SAMTEC

SSW-130-01-T-S

Datasheet

30 Pos 2.54mm Socket Strip Receptacle, Square Forked, Thru-Hole

Samtec

SSW-130-01-T-S

Name: SSW-130-01-T-S Samtec
Brand: Samtec
SKU: SSW-130-01-T-S

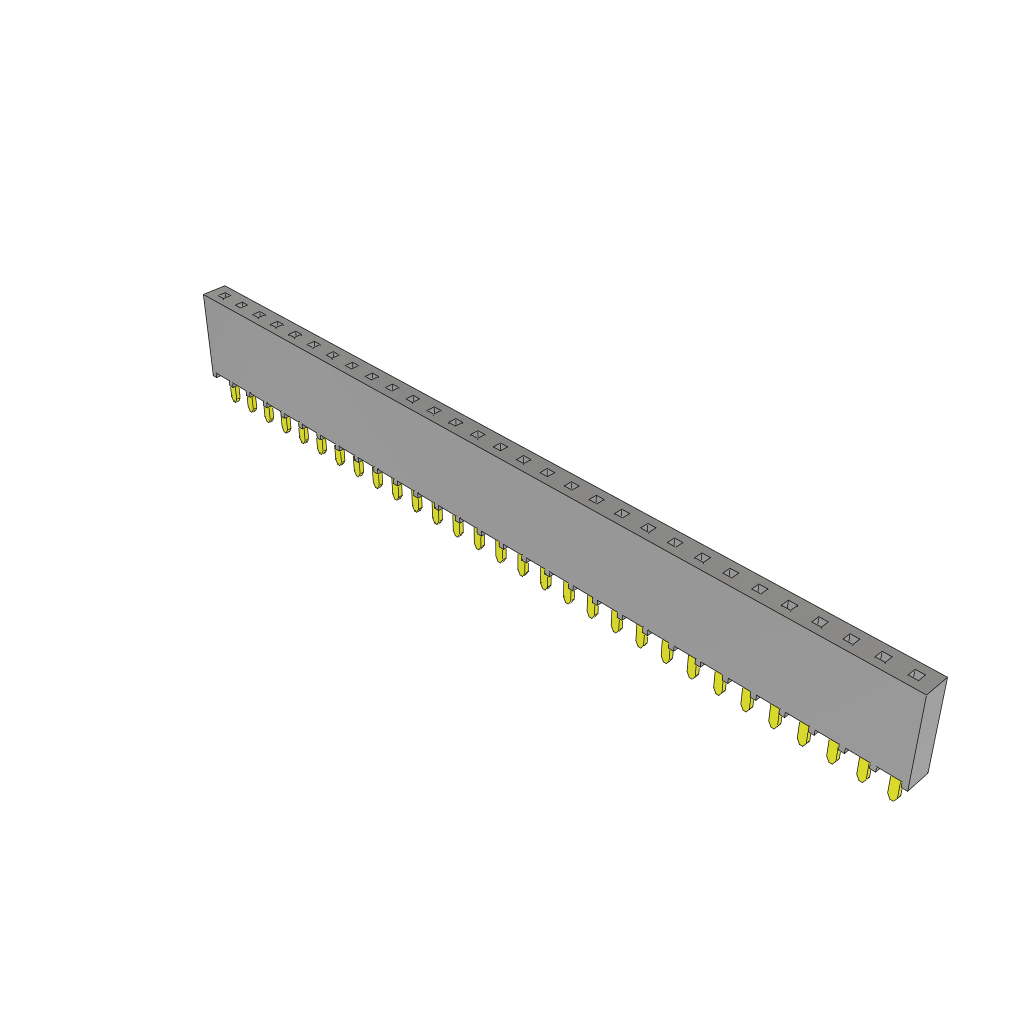

30 Pos 2.54mm Socket Strip Receptacle, Square Forked, Thru-Hole

30-position, single-row socket strip with a 2.54mm pitch. Features tin-plated bronze, square-shaped forked contacts for mating. This top-entry, through-hole receptacle has a black polymer insulation material and a UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C with a mating cycle rating of 100.

MountingThrough Hole

Quick Jump:

Technical Specifications

Samtec SSW-130-01-T-S technical specifications.

General

Contact Finish - Mating	TIN
Contact Material	Bronze
Contact Plating	Tin
Contact Shape	Square
Contact Type	Forked
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	8.51mm
Housing Color	Black
Insulation Color	Black
Insulation Material	Polymer
Lead Free	Lead Free
Length	76.7mm
Mating Cycles	100
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	30
Number of Positions	30
Number of Rows	1
Packaging	Bulk
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	SSW
Termination	Solder
Width	2.41mm
