TCSD-10-S-80.00-01-F-N
20-Position 2-Row Female Flat Flex IDC Connector, Gold Contact, Unshielded
The TCSD-10-S-80.00-01-F-N is a 20-position, 2-row female flat flex IDC connector from Samtec. It features gold contact plating and is not radiation hardened. The connector is RoHS compliant and available in bulk packaging. It is designed for use with flat flex wire and cable.
Quick Jump:
Technical Specifications
Samtec TCSD-10-S-80.00-01-F-N technical specifications.
General
| Color | Grey |
| Contact Plating | Gold |
| Gender | Female |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Tiger Eye™ TCSD |
| Shielding | Unshielded |
| Termination | IDT |
| Wire/Cable Type | Flat Flex |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TCSD-10-S-80.00-01-F-N Datasheet
Download the complete datasheet for Samtec TCSD-10-S-80.00-01-F-N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

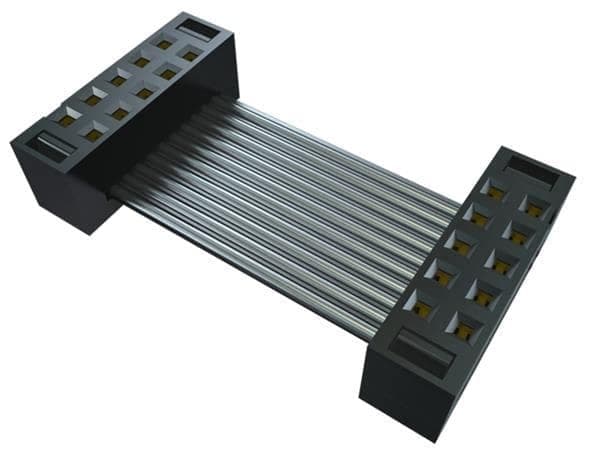

Product Images
