14-position shrouded header with 1.27mm pitch, featuring Tiger Eye™ technology for reliable board-to-board connectivity. Male pin contacts made of bronze with gold plating ensure excellent conductivity and durability. Straight, top-entry surface mount termination with a solder cup design. Operates within a -55°C to 125°C temperature range and rated for 275V AC. Black polymer insulation and housing meet UL94 V-0 flammability standards. Supplied in tube packaging.
Quick Jump:
Technical Specifications
Samtec TFM-107-02-S-D-WT technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 5.72mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 15.57mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 1.27mm |
| RoHS Compliant | Yes |
| Series | Tiger Eye™ TFM |
| Termination | Solder |
| Voltage Rating (AC) | 275V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TFM-107-02-S-D-WT Datasheet
Download the complete datasheet for Samtec TFM-107-02-S-D-WT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

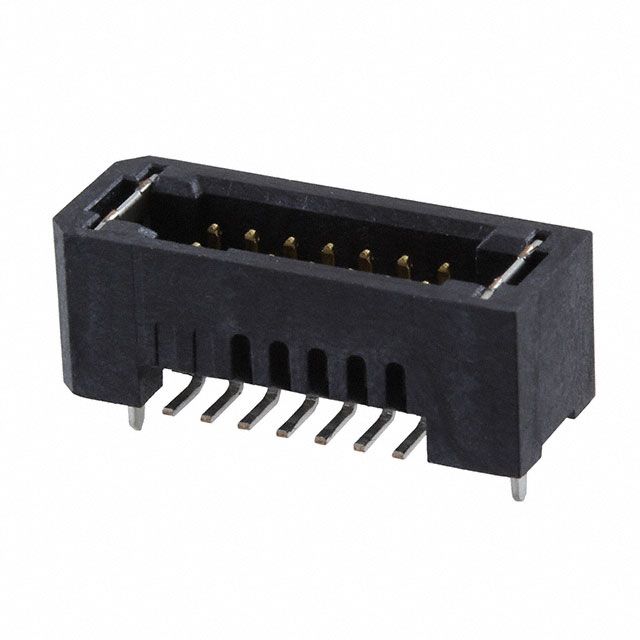

Product Images
