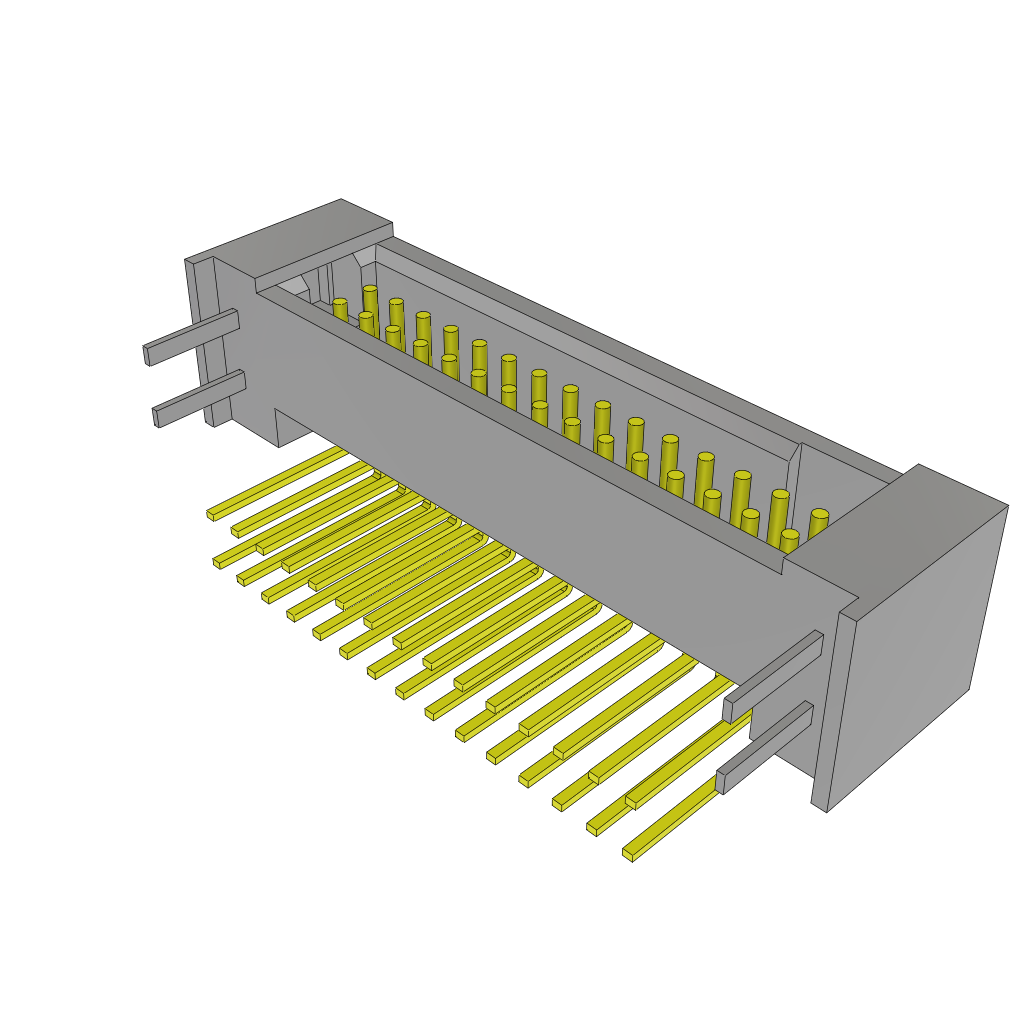

30-position, 2-row shrouded header with right-angle, side-entry, through-hole termination. Features 1.27mm pitch and male pin contacts with gold plating over bronze for superior conductivity. Rated for 5A max current and 350V AC max voltage, operating between -55°C and 125°C. Constructed with a black polymer insulator and housing, achieving a UL94 V-0 flammability rating.
Quick Jump:
Technical Specifications
Samtec TFM-115-01-L-D-RE2-WT technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Depth
8mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
Polymer
Length
25.73mm
Max Current Rating
5A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
350V
Number of Contacts
30
Number of Positions
30
Number of Rows
2
Orientation
Right Angle
Packaging
Rail/Tube
Pitch
1.27mm
RoHS Compliant
Yes
Series
Tiger Eye™ TFM
Termination
Solder
Voltage Rating (AC)
275V
Compliance
RoHS
Compliant
Datasheet
Samtec TFM-115-01-L-D-RE2-WT Datasheet
Download the complete datasheet for Samtec TFM-115-01-L-D-RE2-WT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
