Shrouded header with 30 positions and 2 rows, featuring a 0.05-inch pitch and 0.05-inch row spacing. This surface mount component utilizes gold-plated bronze square male pins for mating, with a maximum operating temperature of 125°C and a minimum of -55°C. The black polymer insulation meets UL94 V-0 flammability rating and the component has a 275V AC voltage rating.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TFM-115-32-S-D-LC technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.05inch |
| Series | Tiger Eye™ TFM |
| Termination | Solder |
| Voltage Rating (AC) | 275V |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TFM-115-32-S-D-LC Datasheet
Download the complete datasheet for Samtec TFM-115-32-S-D-LC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

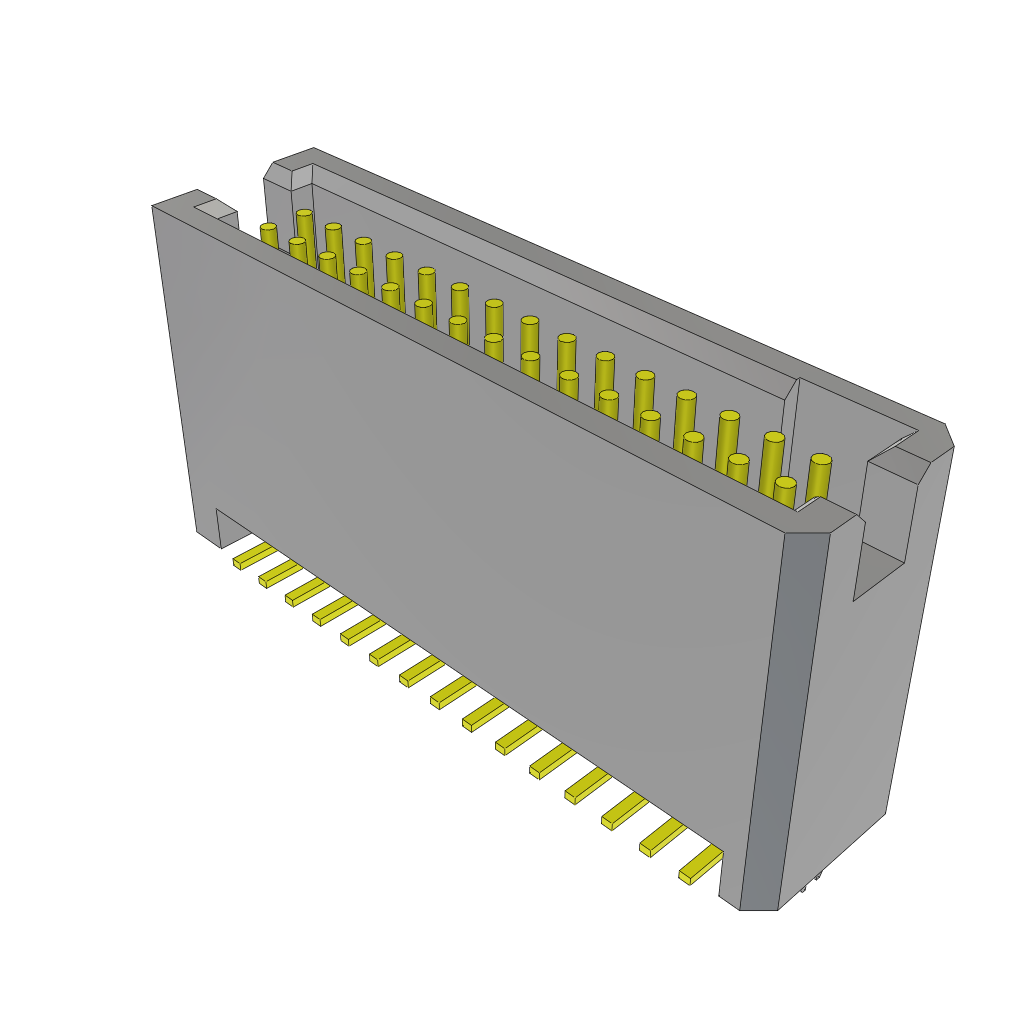

Product Images
