3-position, 1-row unshrouded header with a 2mm pitch for surface mount applications. Features male pin contacts made of bronze with tin plating and a square contact shape. Rated for a maximum operating temperature of 105°C and a minimum of -55°C, with UL94 V-0 flammability. RoHS compliant and lead-free.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TMM-103-01-T-S-SM technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin, Matte |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMM |
| Termination | Solder |
| Width | 1.97mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TMM-103-01-T-S-SM Datasheet
Download the complete datasheet for Samtec TMM-103-01-T-S-SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

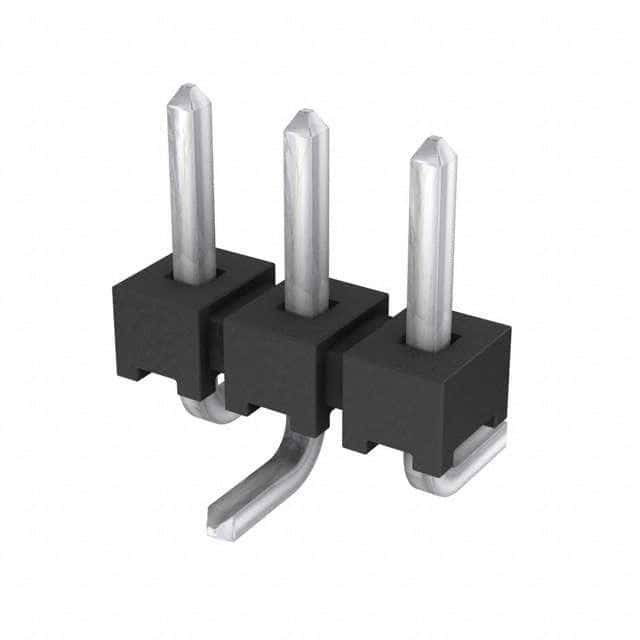

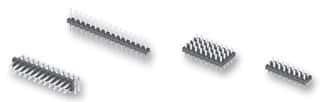

Product Images
