Unshrouded header with 3 positions and 1 row, featuring a 2.54mm pitch. Male pin contacts made of bronze and brass with tin plating offer circular mating surfaces. This through-hole mount component has a solder termination and a black glass-filled nylon housing. Operating temperature range is -55°C to 105°C, with a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TS-103-T-A technical specifications.
General
Contact Finish - Mating
TIN
Contact Material
Bronze, Brass
Contact Plating
Tin
Contact Shape
Circular
Contact Type
Male Pin
Flammability Rating
UL94 V-0
Gender
Male
Height
2.54mm
Housing Color
Black
Insulation Color
Black
Insulation Material
Glass
Lead Free
Lead Free
Length
7.62mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TS
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec TS-103-T-A Datasheet
Download the complete datasheet for Samtec TS-103-T-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

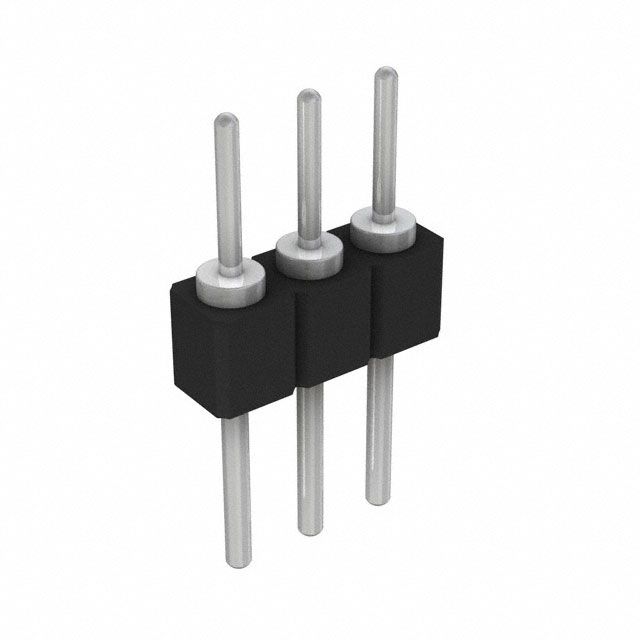

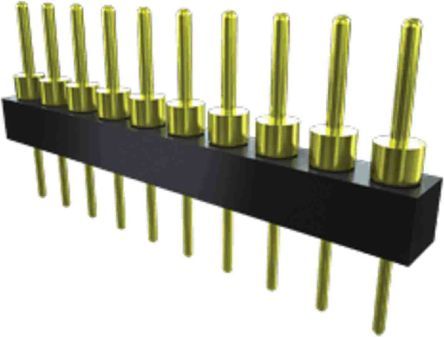

Product Images
