Unshrouded header with 6 positions and 1 row, featuring a 2.54mm pitch. This male connector has brass contacts with tin plating and a mating length of 0.166 inches. The black housing is constructed from plastic and supports through-hole mounting with a solder termination. Operating temperature range is -55°C to 105°C, and the component is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TS-106-T-A technical specifications.
General
Color
Black
Contact Material
Brass
Contact Mating Length
0.166inch
Contact Plating
Tin
Gender
Male
Height
2.54mm
Housing Color
Black
Lead Free
Lead Free
Length
15.2mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Package Quantity
1
Packaging
Bulk
Pitch
0.1inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TS
Termination
Solder
Width
2.54mm
Compliance
RoHS
Compliant
Datasheet
Samtec TS-106-T-A Datasheet
Download the complete datasheet for Samtec TS-106-T-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

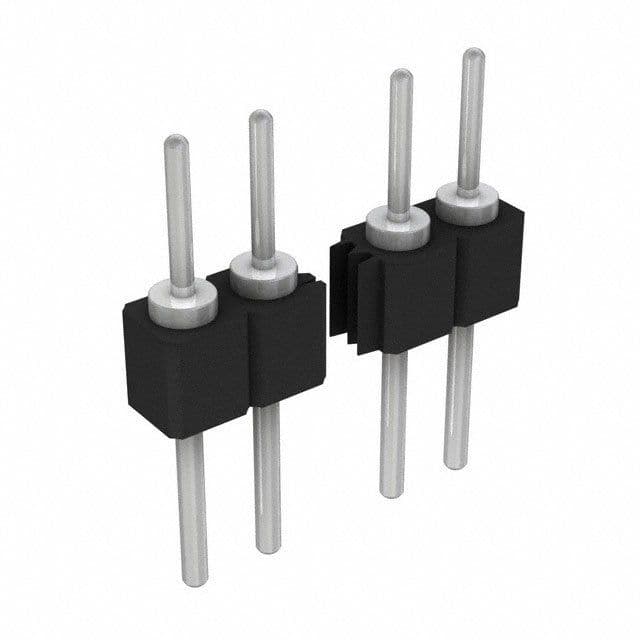

Product Images
