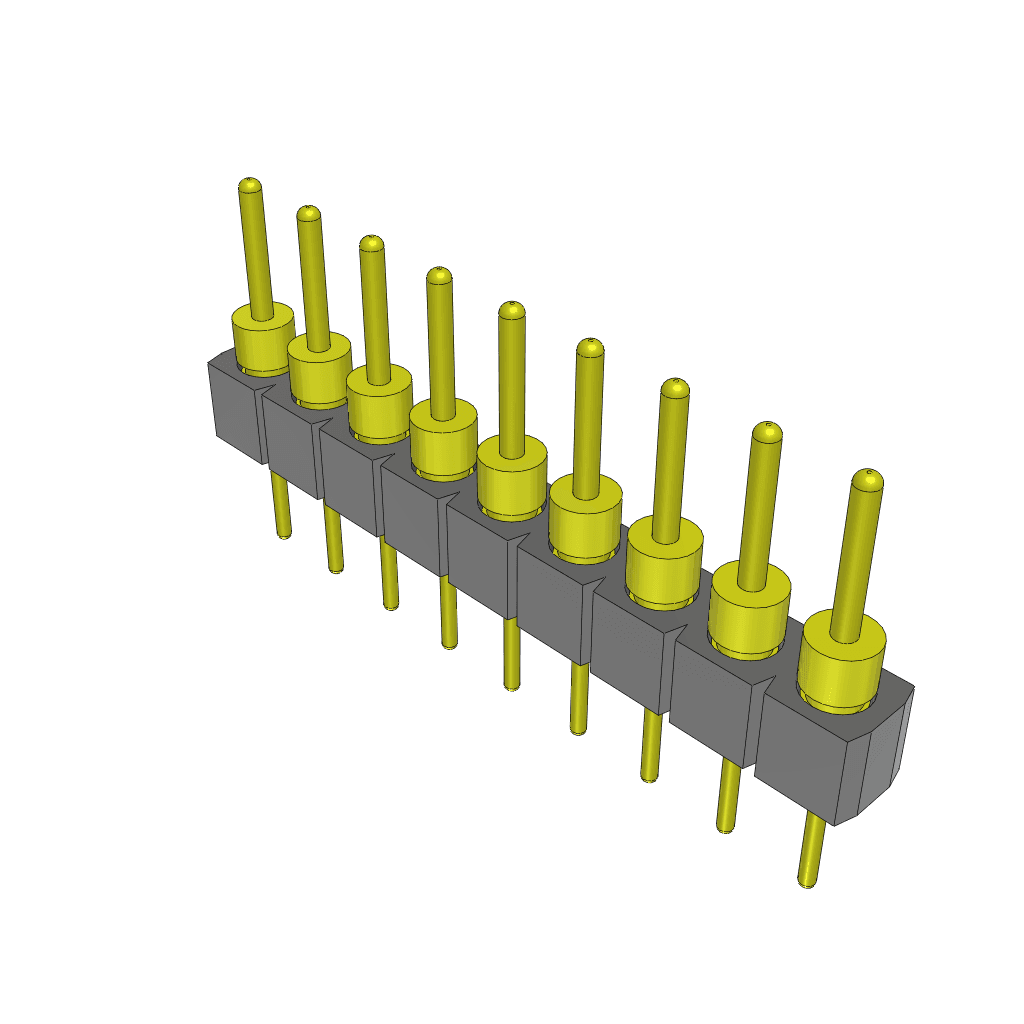

Unshrouded header with 9 positions and 1 row, featuring a 2.54mm pitch. This male connector offers straight, top-entry orientation with solder termination and through-hole mounting. Constructed with bronze and brass contacts plated in gold, it boasts a 1A current rating and operates within a -55°C to 125°C temperature range. The black housing ensures durability, and the component is RoHS compliant.
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TS-109-G-A technical specifications.
General
Color
Black
Contact Material
Bronze, Brass
Contact Mating Length
0.166inch
Contact Plating
Gold
Current Rating
1A
Depth
2.54mm
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
22.86mm
Max Current Rating
1A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
9
Number of Positions
9
Number of Rows
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TS
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec TS-109-G-A Datasheet
Download the complete datasheet for Samtec TS-109-G-A to view detailed technical specifications.
