Samtec
TSM-102-01-L-SH-P-TR
2-Position Shrouded Header, 2.54mm Pitch, 125°C, Lead Free, RoHS Compliant
This 2-position shrouded header features a square male pin contact with a gold finish and a bronze material. It has a black polymer insulation and is lead free and RoHS compliant. The operating temperature range is from -55°C to 125°C, and it is packaged on a tape and reel. The header has a 2.54mm pitch and is suitable for surface mount applications.
Quick Jump:
Technical Specifications
Samtec TSM-102-01-L-SH-P-TR technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Packaging | Tape and Reel |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TSM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSM-102-01-L-SH-P-TR Datasheet
Download the complete datasheet for Samtec TSM-102-01-L-SH-P-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

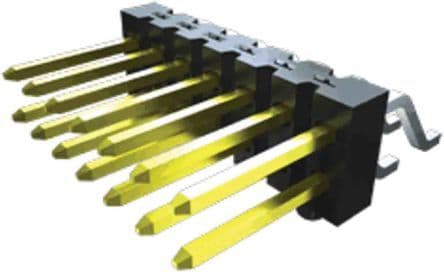

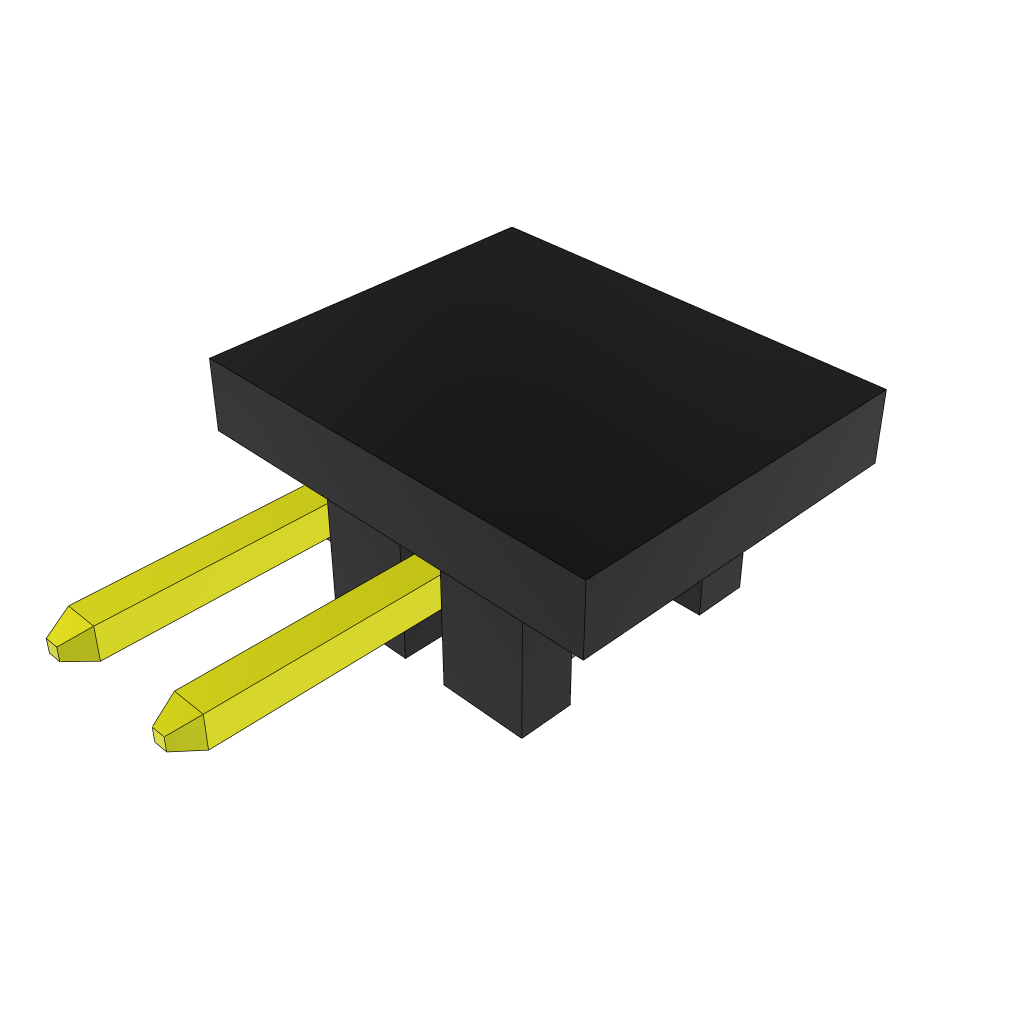

Product Images
