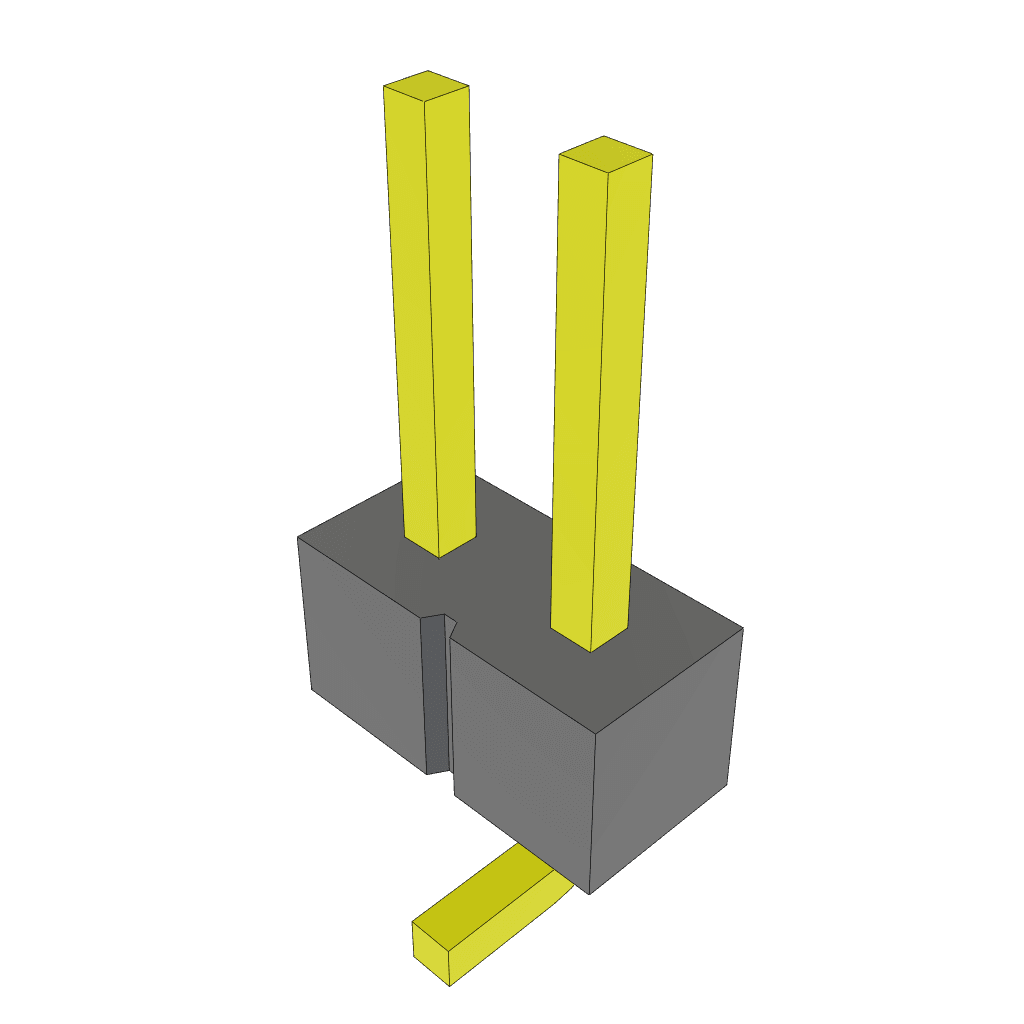

Unshrouded header for board-to-board applications, featuring 2 positions and 1 row with a 2.54mm pitch. This straight, top-entry surface mount component offers a male pin contact type with a gold contact finish and bronze contact material. Rated for a maximum current of 7A and a maximum AC voltage of 475V, it operates within a temperature range of -55°C to 125°C. The black polymer insulation material meets UL94 V-0 flammability rating, and the component is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TSM-102-01-LM-SV technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Mating Length | 0.23inch |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 2.54mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Length | 5.08mm |
| Max Current Rating | 7A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 475V |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TSM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSM-102-01-LM-SV Datasheet
Download the complete datasheet for Samtec TSM-102-01-LM-SV to view detailed technical specifications.
