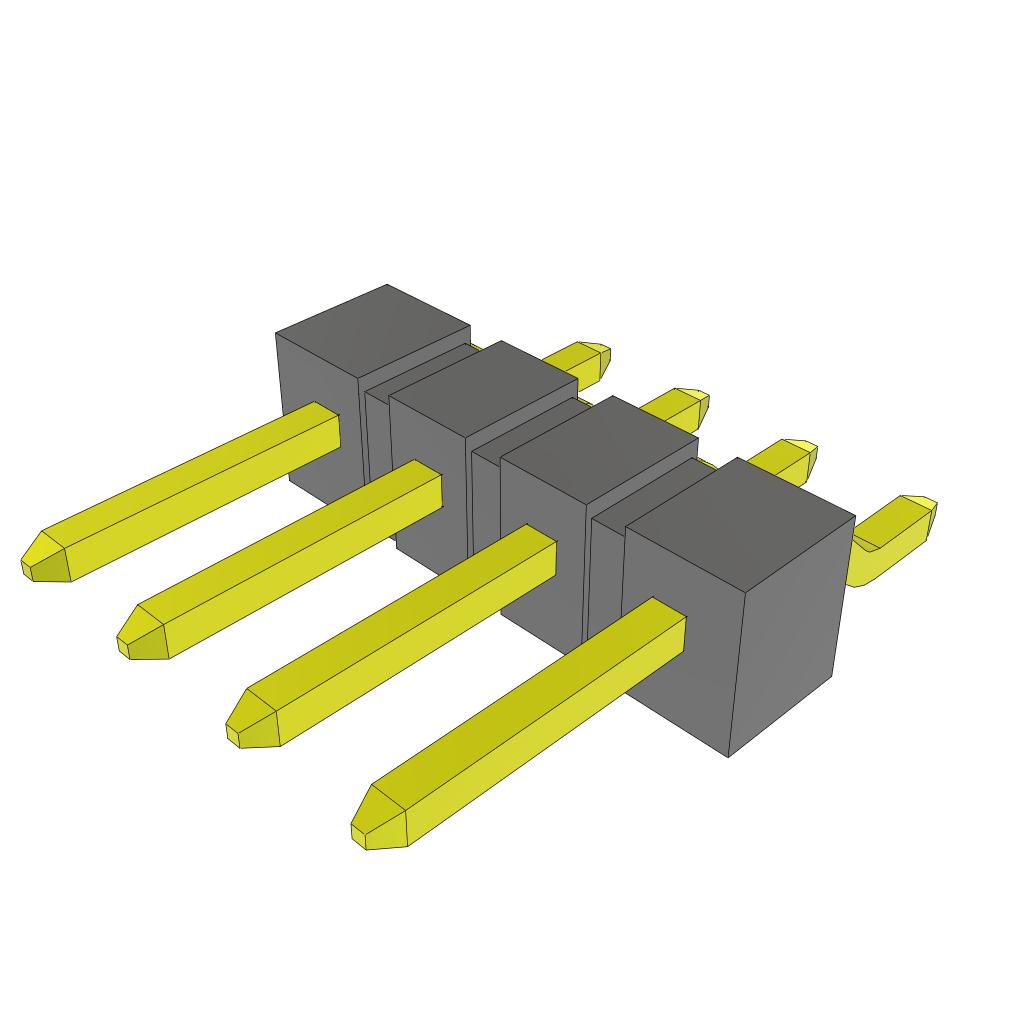

Unshrouded header with 4 positions and 1 row, featuring a 2.54mm pitch. This male connector has square, gold-plated bronze contacts for mating and a 7A current rating. Designed for horizontal, side entry, surface mount (SMD) termination with solder, it operates within a -55°C to 125°C temperature range. The black polymer insulation meets UL94 V-0 flammability standards and the component is RoHS compliant.
Current Rating7A
Quick Jump:
Technical Specifications
Samtec TSM-104-01-L-SH technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 7A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Horizontal |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TSM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSM-104-01-L-SH Datasheet
Download the complete datasheet for Samtec TSM-104-01-L-SH to view detailed technical specifications.
