Unshrouded header, straight orientation, 4 positions, 1 row, male pin contact type, 2.54mm pitch, surface mount termination. Features bronze contact material with tin plating, 7A max current rating, and 475V max AC voltage rating. Black polymer insulation material with UL94 V-0 flammability rating. Operating temperature range of -55°C to 105°C. RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Samtec TSM-104-01-T-SV technical specifications.
General
| Color | Black |
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Mating Length | 0.23inch |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 2.54mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | Polymer |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Current Rating | 7A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 475V |
| Mount | Surface Mount |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TSM |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSM-104-01-T-SV Datasheet
Download the complete datasheet for Samtec TSM-104-01-T-SV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

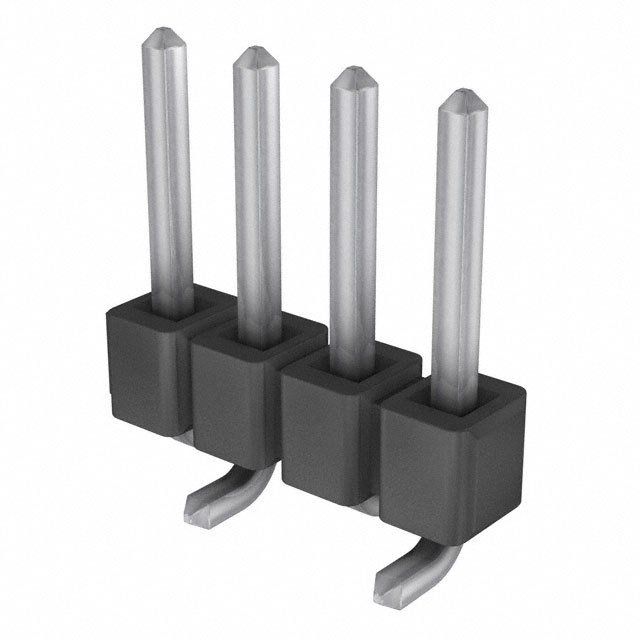

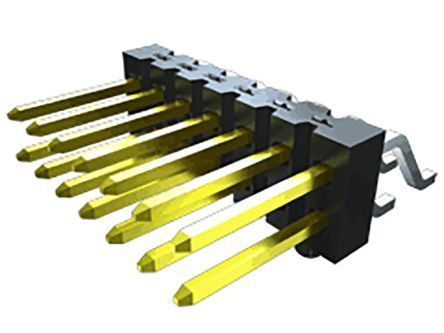

Product Images
