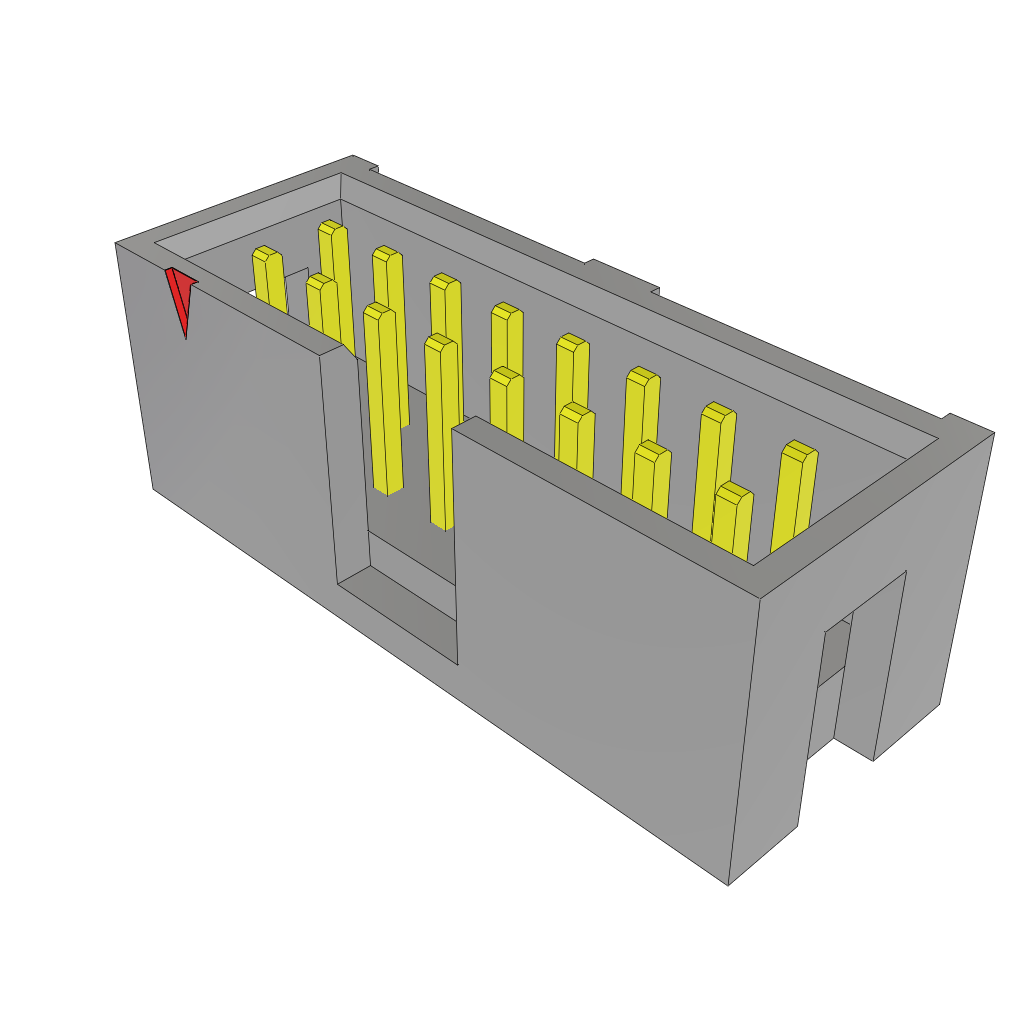

16-position shrouded header with straight, top-entry, thru-hole termination. Features male pin contacts made of bronze with gold plating for mating and a square contact shape. Insulated with black PBT, this connector operates within a -55°C to 125°C temperature range and has a UL94 V-0 flammability rating. The housing is black, and the component is supplied in bulk packaging.
Quick Jump:
Technical Specifications
Samtec TSS-108-01-L-D technical specifications.
General
Contact Finish - Mating
GOLD
Contact Material
Bronze
Contact Plating
Gold
Contact Shape
Square
Contact Type
Male Pin
Depth
9.27mm
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Color
Black
Insulation Material
PBT
Length
24.13mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Number of Contacts
16
Number of Positions
16
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Flex Stack, TSS
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Samtec TSS-108-01-L-D Datasheet
Download the complete datasheet for Samtec TSS-108-01-L-D to view detailed technical specifications.
