Samtec
TSS-113-04-G-D-RA
26-Position Shrouded Header, 2-Row, 2.54mm Pitch, 26-Pin, Through Hole, PBT Insulation, Black
This 26-position shrouded header features a 2-row, 2.54mm pitch configuration with 26 pins. It is designed for through-hole mounting and is constructed with PBT insulation and a black color. The header is RoHS compliant and has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C.
Quick Jump:
Technical Specifications
Samtec TSS-113-04-G-D-RA technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | PBT |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Contacts | 26 |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Flex Stack, TSS |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSS-113-04-G-D-RA Datasheet
Download the complete datasheet for Samtec TSS-113-04-G-D-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

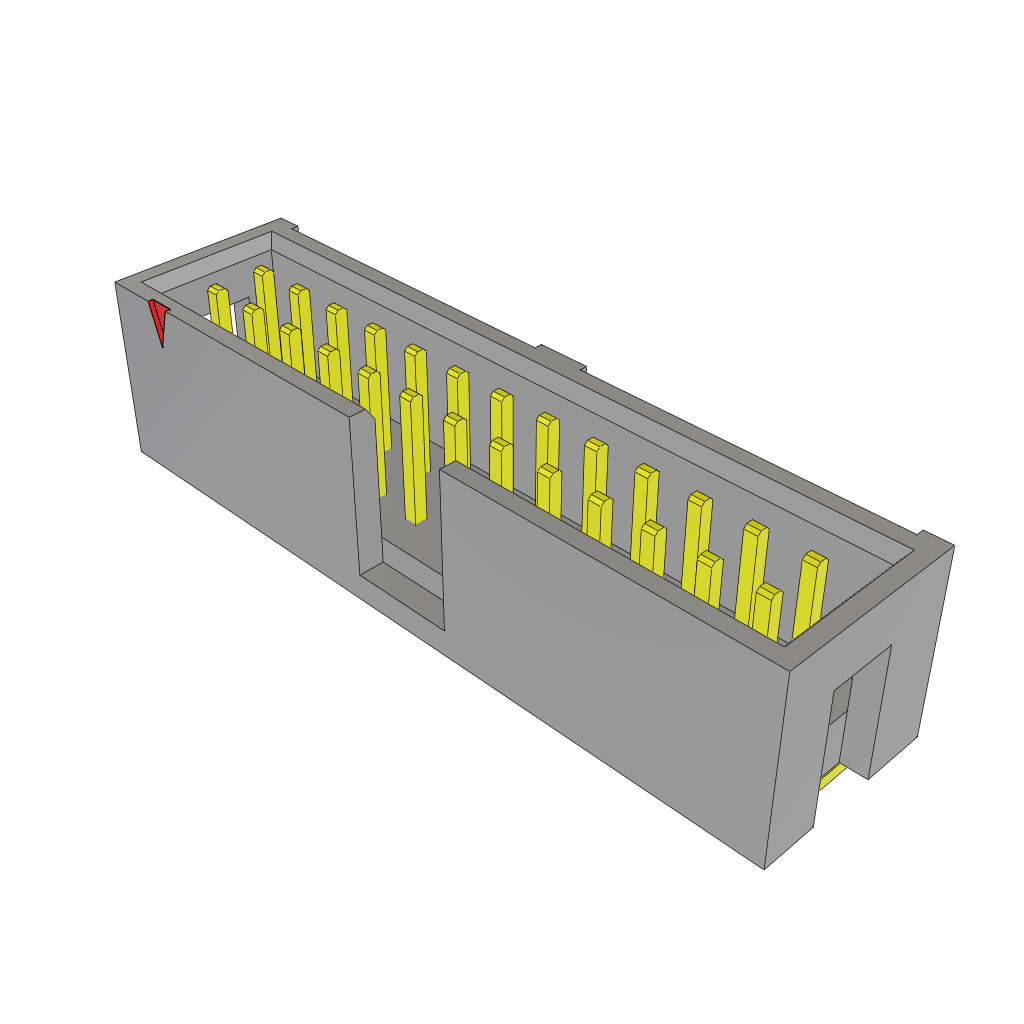

Product Images
