10-position, 2-row shrouded header with a 2.54mm pitch. Features male pin contacts with a TIN mating finish and bronze contact material. Rated for 3A max current and operates between -55°C and 105°C. Black PBT insulation and housing, with a straight, top-entry, through-hole solder termination.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TST-105-01-T-D technical specifications.
General
| Color | Black |
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Mating Length | 0.25inch |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 9.27mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 9.27mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | PBT |
| Length | 20.32mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | Flex Stack, TST |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TST-105-01-T-D Datasheet
Download the complete datasheet for Samtec TST-105-01-T-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

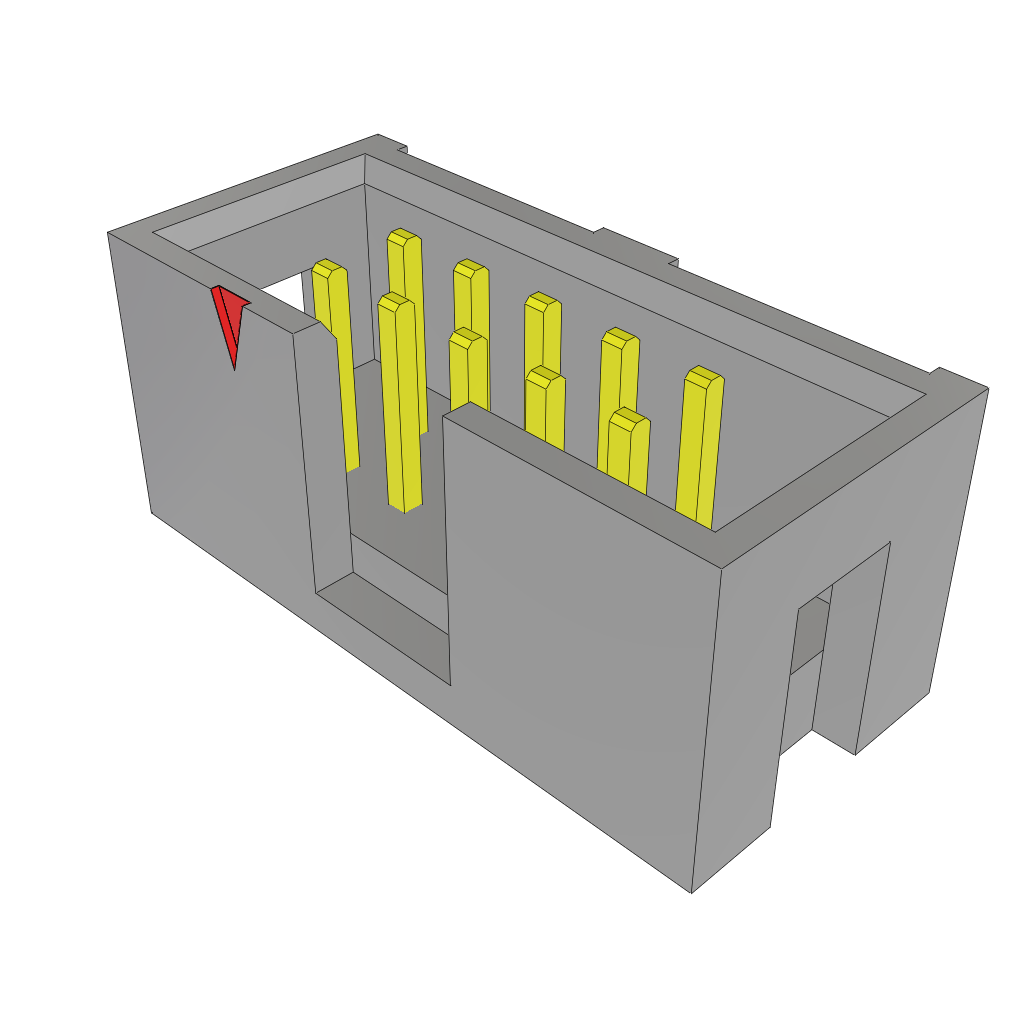

Product Images
