This 14-position right angle header from Samtec features a 2.54mm pitch and a maximum operating temperature of 125°C. It is designed for through hole mounting and has a maximum current rating of 3A. The header is made of bronze with a gold plating and has a flammability rating of UL94 V-0. It is RoHS compliant and available in a rail or tube packaging.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TST-107-04-L-D-RA technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | Black |
| Insulation Material | PBT |
| Max Current Rating | 3A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 14 |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Flex Stack, TST |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TST-107-04-L-D-RA Datasheet
Download the complete datasheet for Samtec TST-107-04-L-D-RA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

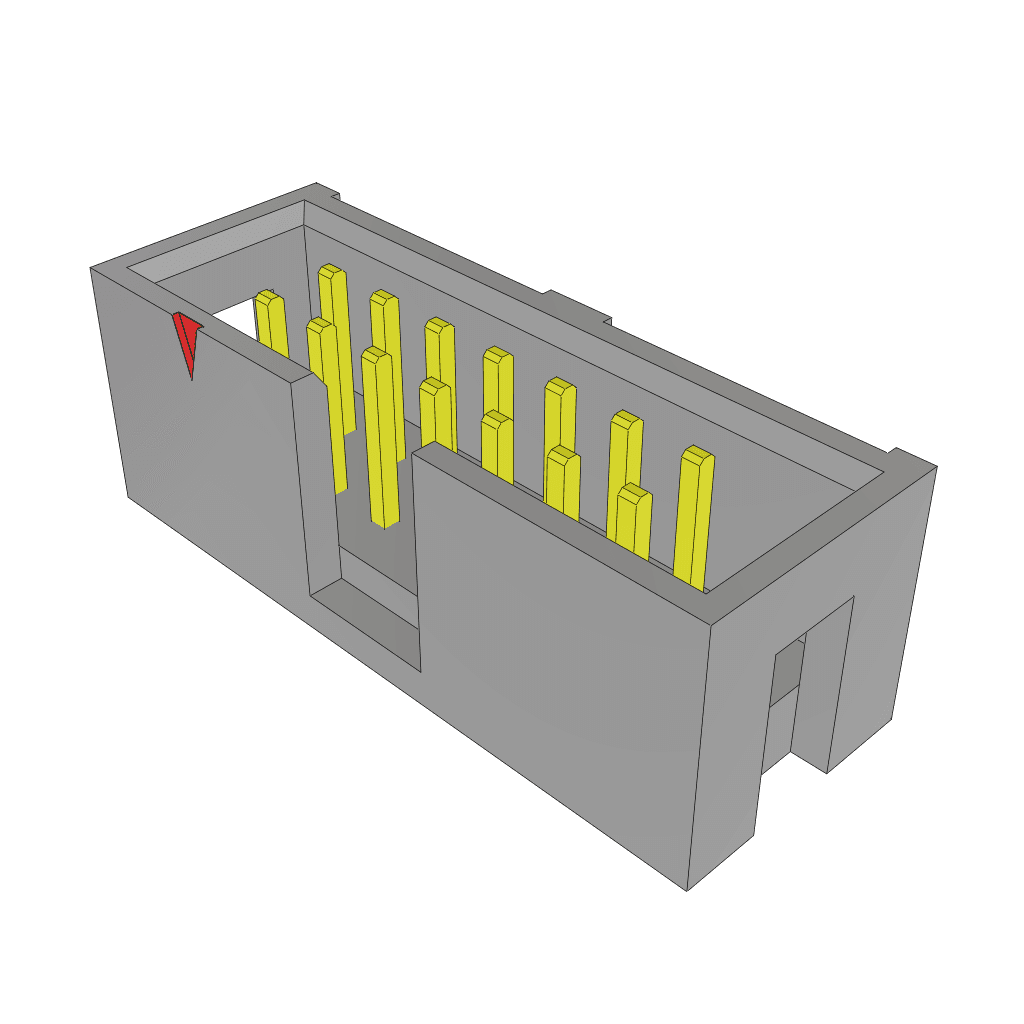

Product Images
