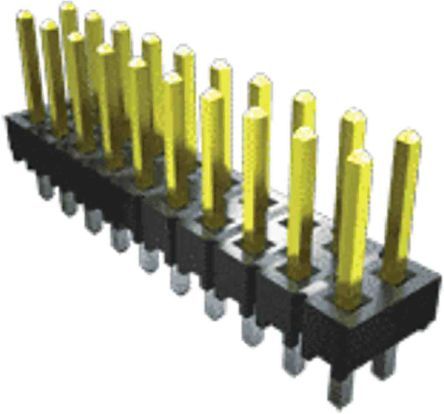

Unshrouded header, straight orientation, male pin contact type. Features 1 position, 1 row, and 1 contact. Contact material is bronze with gold plating, offering a square shape and mating finish of gold. Insulation material is PBT in black, with a black housing. Maximum current rating is 7.6A, with a maximum operating temperature of 125°C and minimum of -55°C. Maximum AC voltage rating is 550V. Termination is solder with through-hole mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TSW-101-14-G-S technical specifications.
General
| Contact Finish - Mating | GOLD |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Depth | 2.54mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 2.54mm |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TSW |
| Termination | Solder |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
