Unshrouded header with 12 positions and 2 rows, featuring a 2.54mm pitch and 0.1-inch row spacing. This male connector offers vertical, top entry orientation with through-hole mounting and solder termination. Constructed with bronze contacts plated in gold, it supports a maximum current rating of 7.6A and a maximum voltage rating of 550V AC. The black housing ensures durability across an operating temperature range of -55°C to 125°C.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TSW-106-07-F-D technical specifications.
General
| Color | Black |
| Contact Material | Bronze |
| Contact Mating Length | 0.23inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Depth | 5.08mm |
| Gender | Male |
| Housing Color | Black |
| Length | 15.24mm |
| Max Current Rating | 7.6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 550V |
| Mount | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Orientation | Vertical |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | TSW |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSW-106-07-F-D Datasheet
Download the complete datasheet for Samtec TSW-106-07-F-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

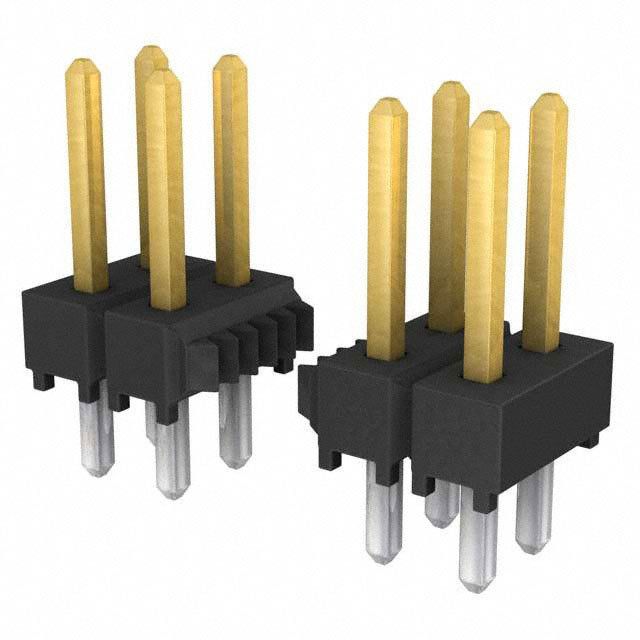

Product Images
