80-position, 2-row unshrouded header with 2.54mm pitch and 0.1-inch row spacing. Features straight, top-entry, thru-hole mounting with solder termination. Male pin contacts made of bronze with gold plating, rated for 7.6A max current and 550V AC max voltage. Operates across a -55°C to 125°C temperature range. Black housing and lead-free construction.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TSW-140-14-G-D technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Mating Length
0.32inch
Contact Plating
Gold
Contact Type
Male Pin
Depth
5.08mm
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
101.6mm
Max Current Rating
7.6A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
550V
Mount
Through Hole
Number of Contacts
80
Number of Positions
80
Number of Rows
2
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Row Spacing
0.1inch
Series
TSW
Termination
Solder
Width
5.08mm
Compliance
RoHS
Compliant
Datasheet
Samtec TSW-140-14-G-D Datasheet
Download the complete datasheet for Samtec TSW-140-14-G-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

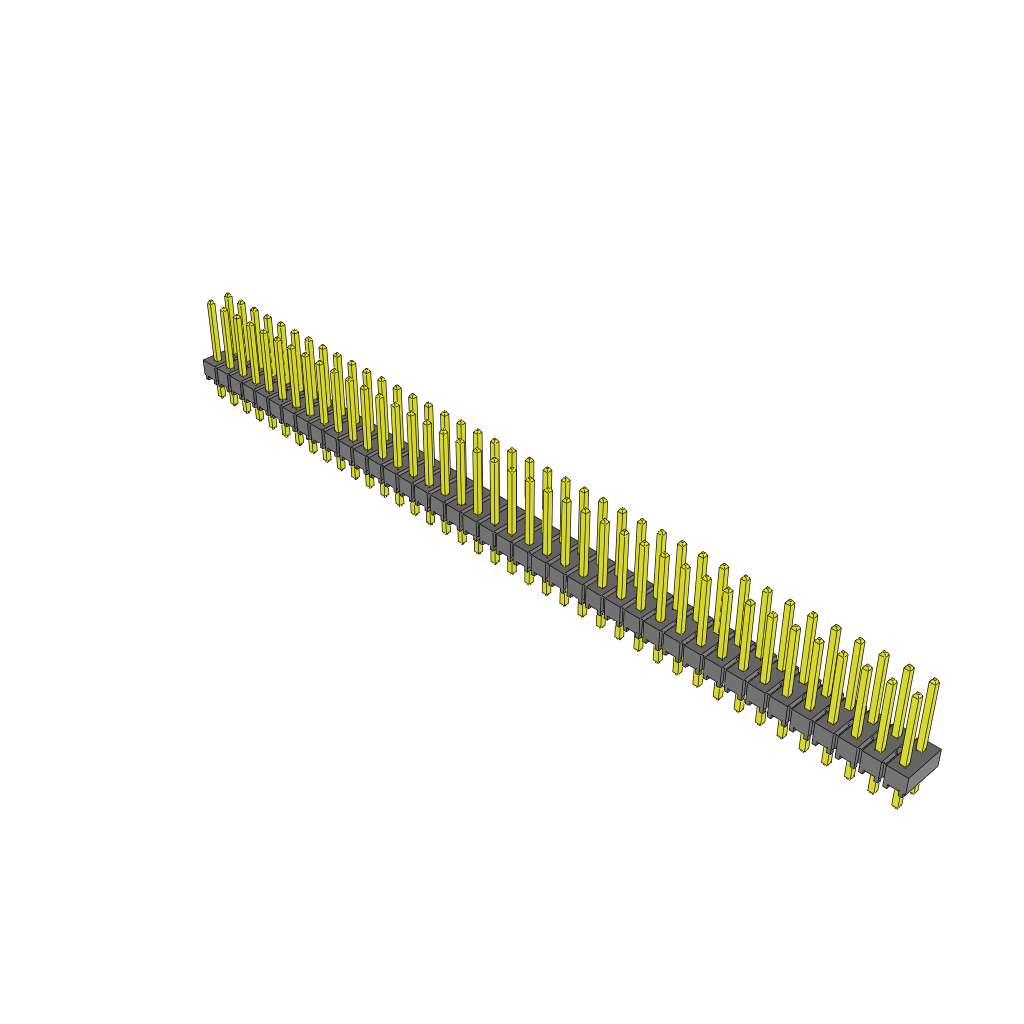

Product Images
