Unshrouded header with 47 male pin contacts on a single row, featuring a 2.54mm pitch and 2.54mm height. Constructed with PBT insulation and bronze contacts plated in tin, this component offers a tin mating finish and square contact shape. Designed for through-hole mounting with solder termination, it operates within a -55°C to 105°C temperature range and boasts a UL94 V-0 flammability rating.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TSW-147-07-T-S technical specifications.
General
| Contact Finish - Mating | TIN |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 2.54mm |
| Housing Color | Black |
| Insulation Color | Black |
| Insulation Material | PBT |
| Lead Free | Lead Free |
| Length | 119mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 47 |
| Number of Positions | 47 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TSW |
| Termination | Solder |
| Width | 2.54mm |
Compliance
| RoHS | Compliant |
Datasheet
Samtec TSW-147-07-T-S Datasheet
Download the complete datasheet for Samtec TSW-147-07-T-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

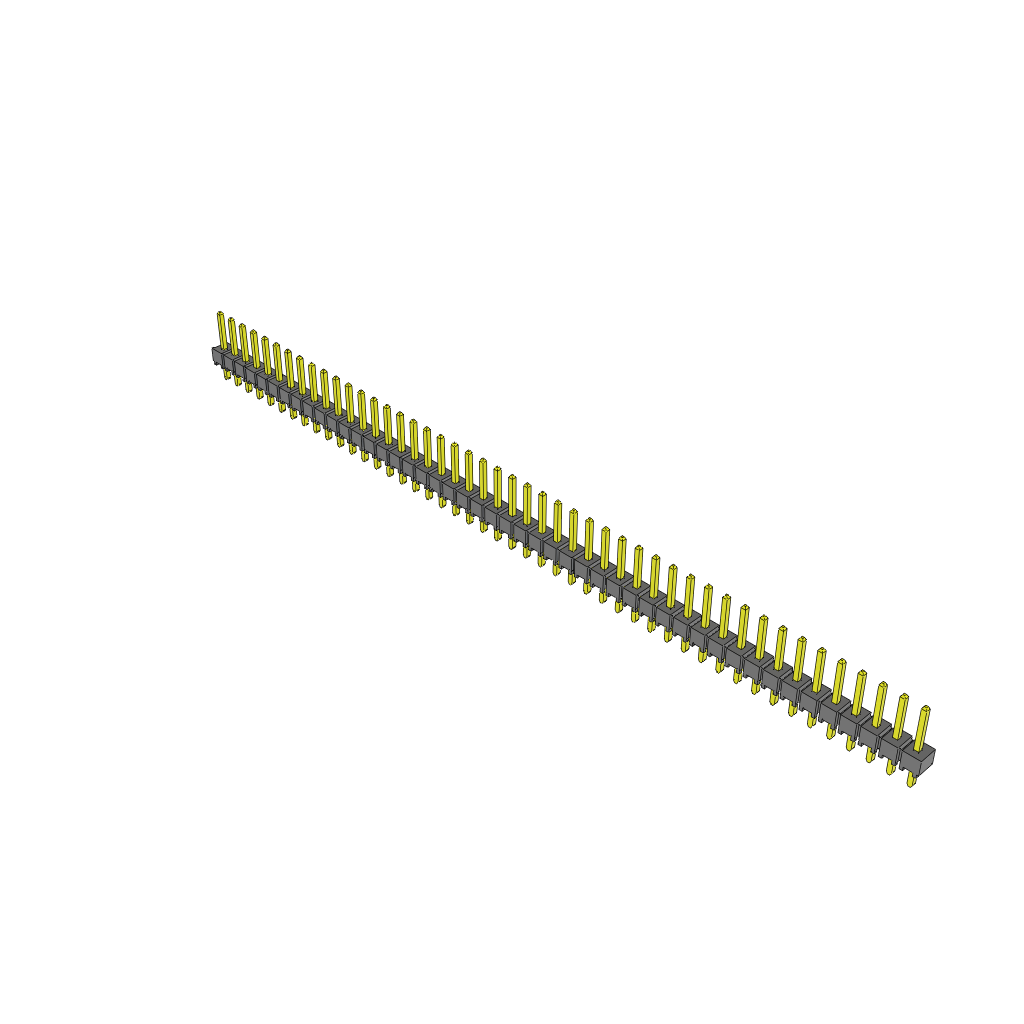

Product Images
