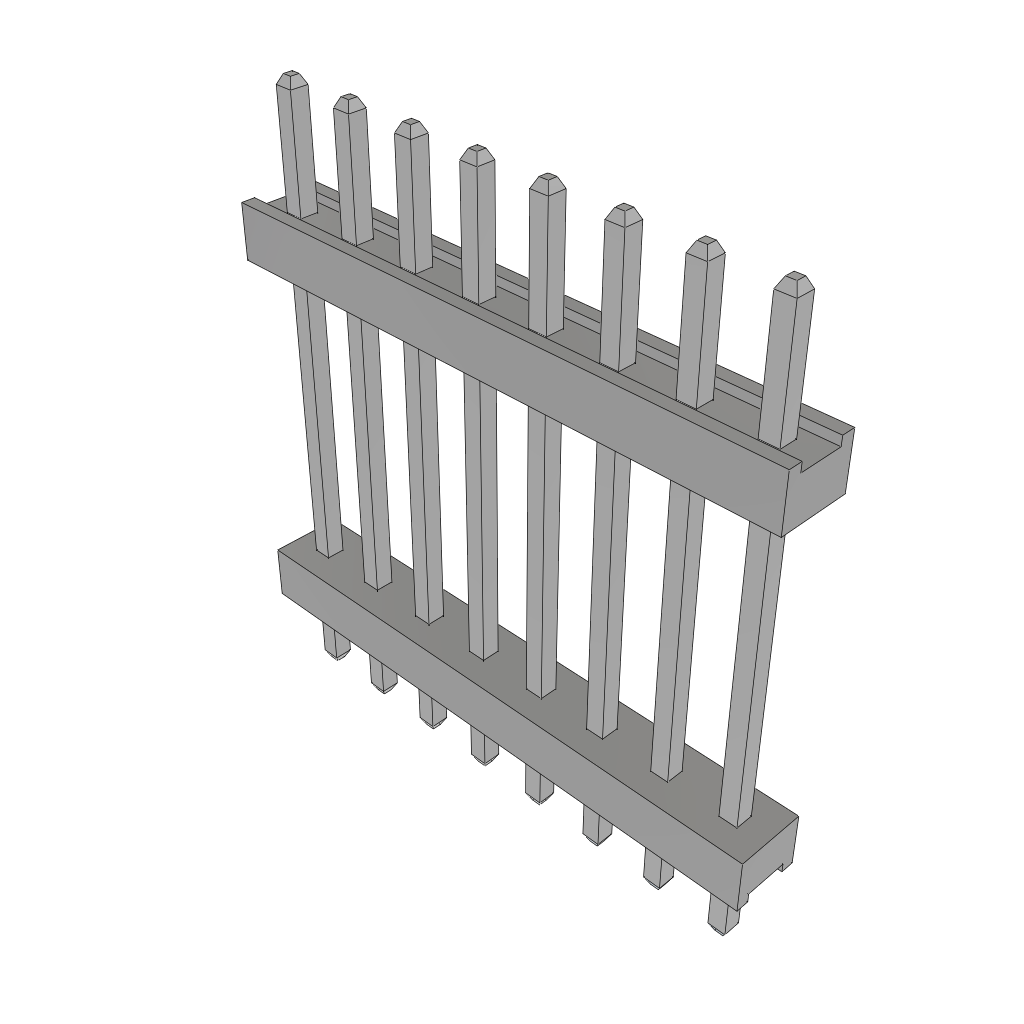

The Samtec TW-08-06-T-S-460-090 is a board stacker with a HDR gender and 8 contacts. It features a terminal pitch of 2mm and a termination method of solder. The component has a minimum operating temperature of -55 degrees Celsius and a maximum operating temperature of 105 degrees Celsius. It is designed for through hole mounting and has a maximum current rating of 5.2 amps per contact.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec TW-08-06-T-S-460-090 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 8 |
| Terminal Pitch | 2mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 5.2/ContactA |
| Height | 14.81mm |
| Mating Length | 3.14mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec TW-08-06-T-S-460-090 Datasheet
Download the complete datasheet for Samtec TW-08-06-T-S-460-090 to view detailed technical specifications.
No datasheet is available for this part.
