Right angle receptacle connector, 4 contacts, USB 2.0 standard, with gold-plated bronze contacts. Features a thermoplastic insulator in orange, rated UL94 V-0 for flammability. Through-hole, horizontal mounting with solder termination. Operating temperature range of -50°C to 85°C, with a maximum AC voltage rating of 30V. RoHS compliant.
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
Samtec USBR-A-S-S-O-TH technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 14.3mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Orange |
| Insulation Material | Thermoplastic |
| Length | 14.55mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -50°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Through Hole, Horizontal |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | USBR |
| Termination | Solder |
| USB Standard | USB 2.0 |
Compliance
| RoHS | Compliant |
Datasheet
Samtec USBR-A-S-S-O-TH Datasheet
Download the complete datasheet for Samtec USBR-A-S-S-O-TH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

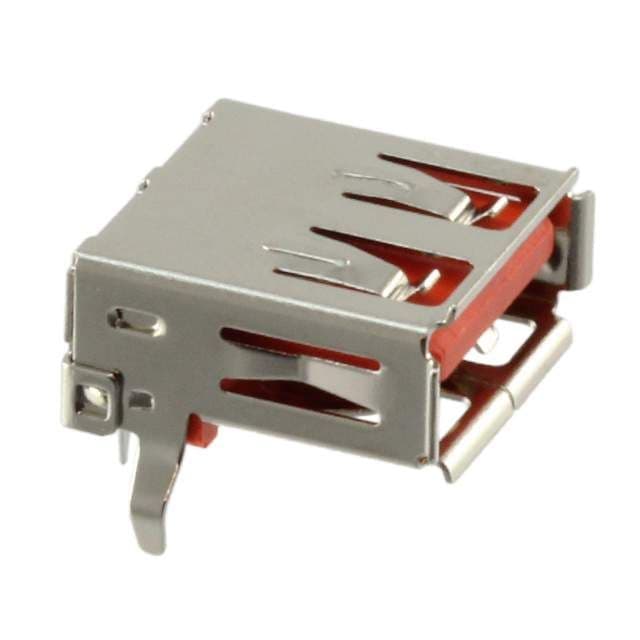

Product Images
