4-contact, shielded, right-angle receptacle for telecom and datacom applications. Features gold-plated bronze contacts and a solder termination. Operates within a -50°C to 85°C temperature range with a 30V maximum voltage rating. This through-hole, horizontal mount connector has a 2.5mm pitch and is UL94 V-0 flammability rated.
Voltage Rating30V
MountingThrough Hole, Horizontal
Quick Jump:
Technical Specifications
Samtec USBR-B-S-S-O-TH technical specifications.
General
Contact Material
Bronze
Contact Plating
Gold
Depth
16.5mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Insulation Color
Orange
Length
14.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-50°C
Max Voltage Rating (AC)
30V
Mount
Through Hole, Horizontal
Number of Contacts
4
Number of Ports
1
Orientation
Right Angle
Package Quantity
1
Packaging
Tray
Pitch
2.5mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
USBR-B
Shielding
Shielded
Termination
Solder
USB Standard
USB 2.0
Voltage Rating
30V
Compliance
RoHS
Compliant
Datasheet
Samtec USBR-B-S-S-O-TH Datasheet
Download the complete datasheet for Samtec USBR-B-S-S-O-TH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

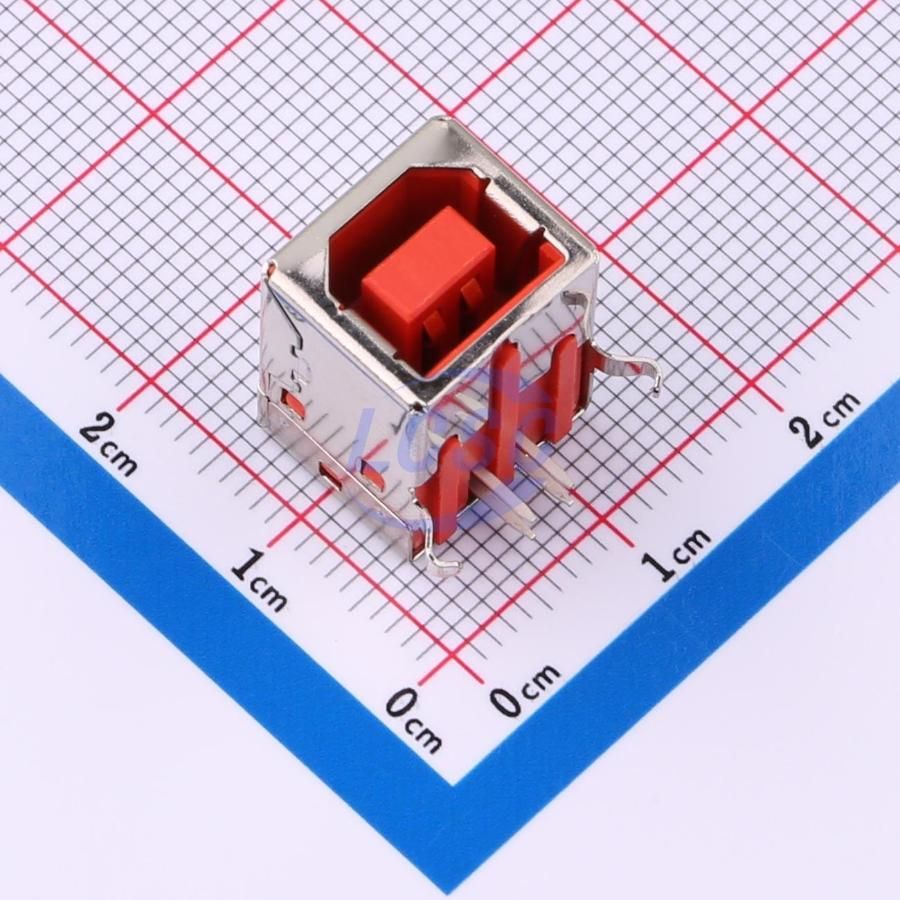

Product Images
