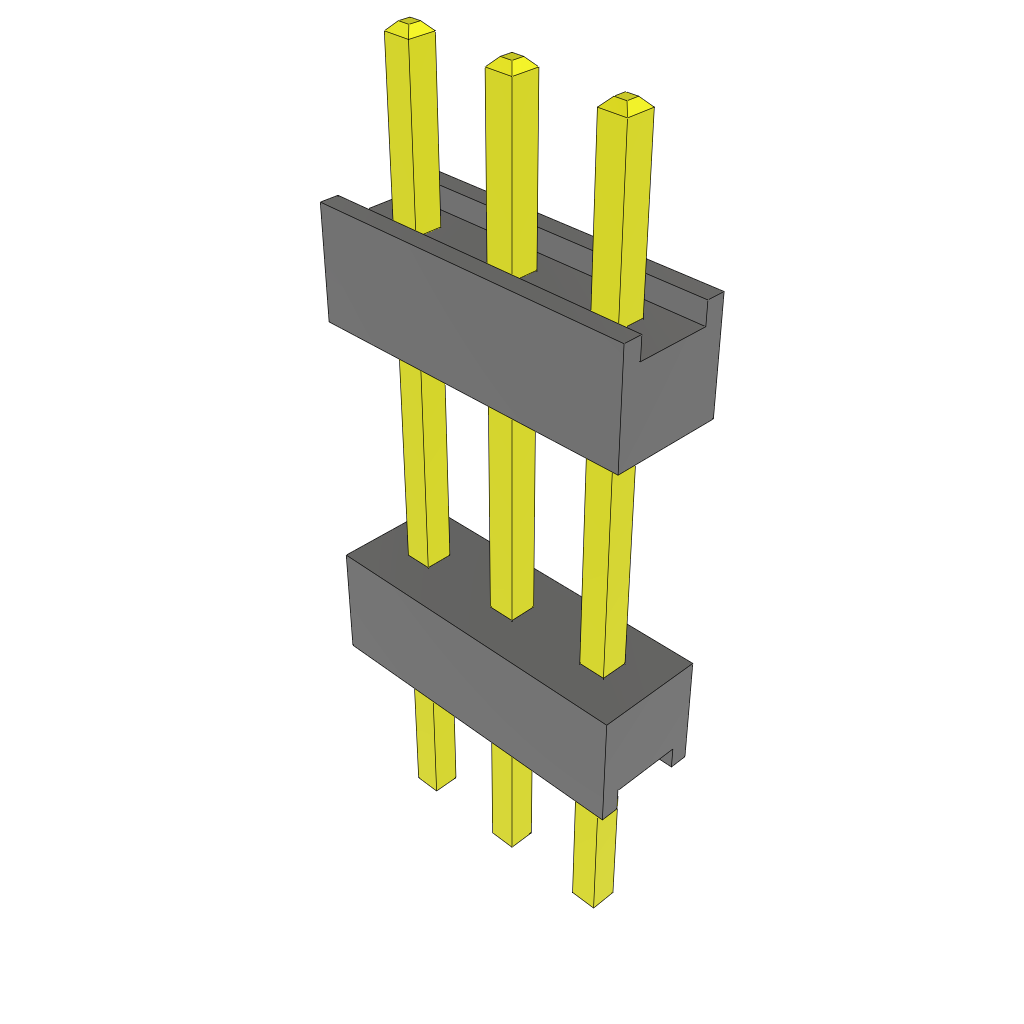

The ZW-03-09-T-S-425-170 is a 3-contact HDR board stacker with a terminal pitch of 2.54mm. It is designed for through hole mounting and has a maximum operating temperature range of -55°C to 105°C. The stacker has a height of 14.22mm and a mating length of 3.44mm. It is rated for a maximum current of 3A per contact and is suitable for use in applications where a high-density interconnect is required.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec ZW-03-09-T-S-425-170 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 3 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 105°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 14.22mm |
| Mating Length | 3.44mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec ZW-03-09-T-S-425-170 Datasheet
Download the complete datasheet for Samtec ZW-03-09-T-S-425-170 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
