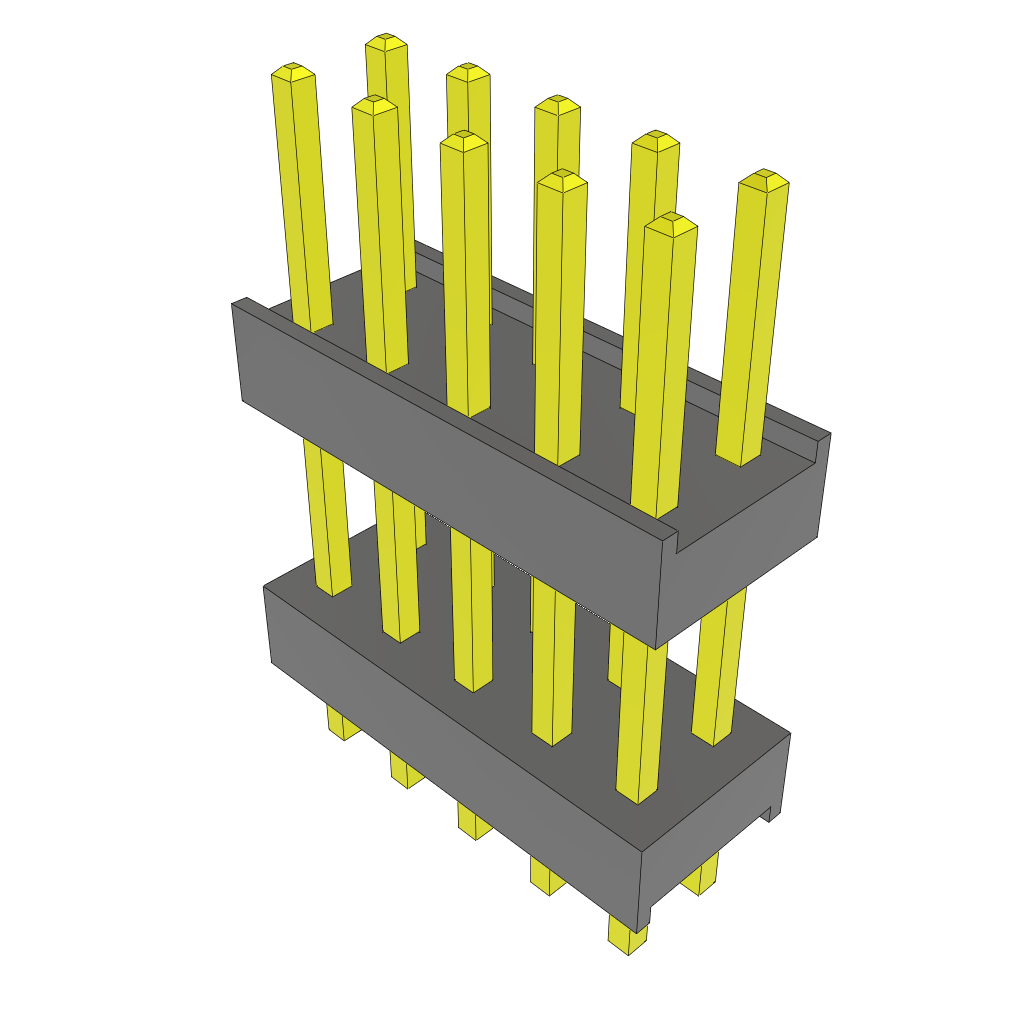

This Samtec ZW series header features 10 male contacts, a shrouded design, and a black glass-filled polyester insulator. It is rated for through hole mounting and meets the UL 94V-0 flammability standard. The contacts have a matte tin finish and are terminated with solder. The header is suitable for use in applications where a secure and reliable connection is required.
MountingSTRAIGHT
Quick Jump:
Technical Specifications
Samtec ZW-05-09-S-D-415-100 technical specifications.
General
| Termination Type | SOLDER |
| Insulator Material | GLASS FILLED POLYESTER |
| Total Number of Contacts | 10 |
| Contact Gender | MALE |
| Manufacturer Series | ZW |
| Mounting Style | STRAIGHT |
| Insulator Color | BLACK |
| UL Flammability Code | 94V-0 |
| Number Of PCB Rows | 2 |
| Contact Finish Termination | MATTE TIN |
Compliance
| RoHS | Yes |
| Lead Free | Yes |
| REACH | Compliant |
| Military Spec | True |
Datasheet
Samtec ZW-05-09-S-D-415-100 Datasheet
Download the complete datasheet for Samtec ZW-05-09-S-D-415-100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
