ZW-12-13-S-D-745-295

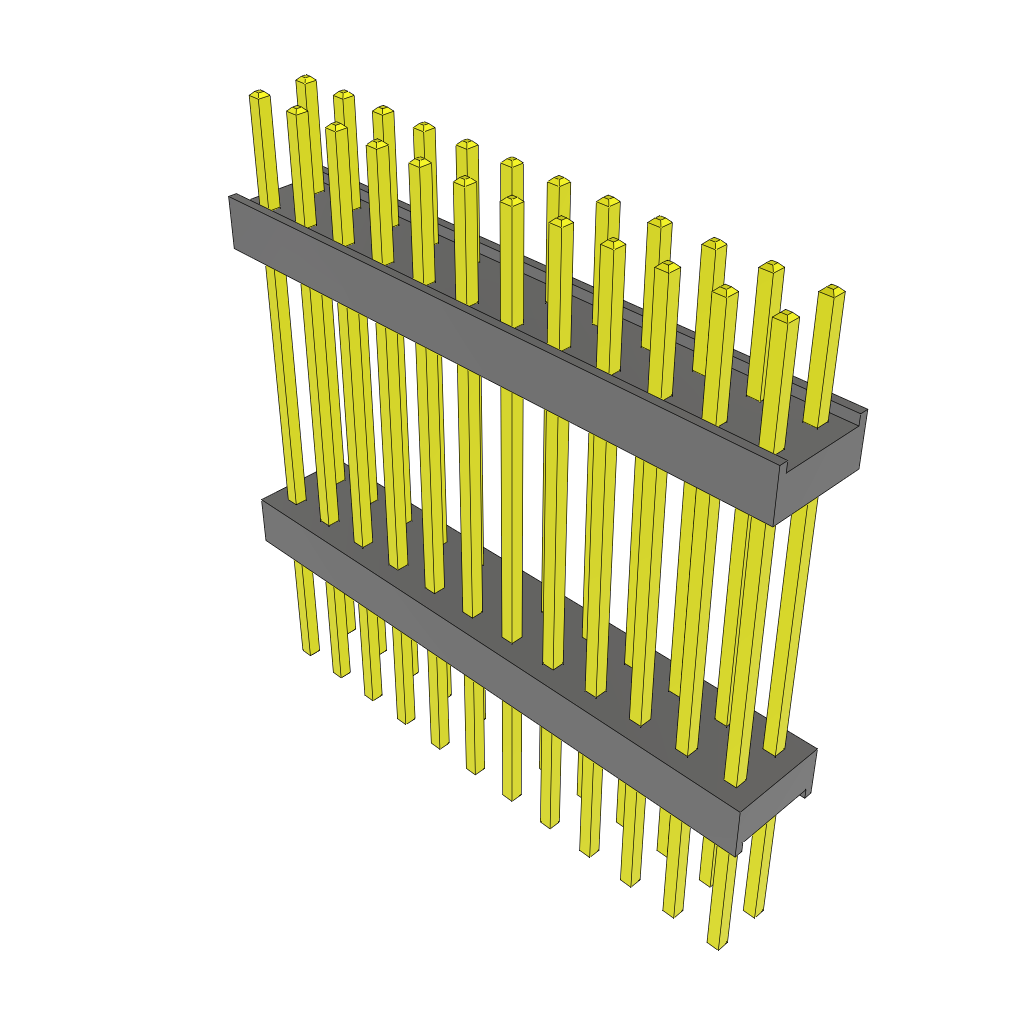

24-Contact HDR Board Stacker, 2.54mm Pitch, Through Hole Mount, -55 to 125°C
The ZW-12-13-S-D-745-295 is a 24-contact HDR board stacker from Samtec, designed for through-hole mounting. It features a 2.54mm terminal pitch and a straight body orientation. The component is rated for operation between -55°C and 125°C. The maximum current rating per contact is 3A. The stacker has a height of 23.74mm and a mating length of 4.82mm.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec ZW-12-13-S-D-745-295 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 24 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 2 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 23.74mm |
| Mating Length | 4.82mm |
