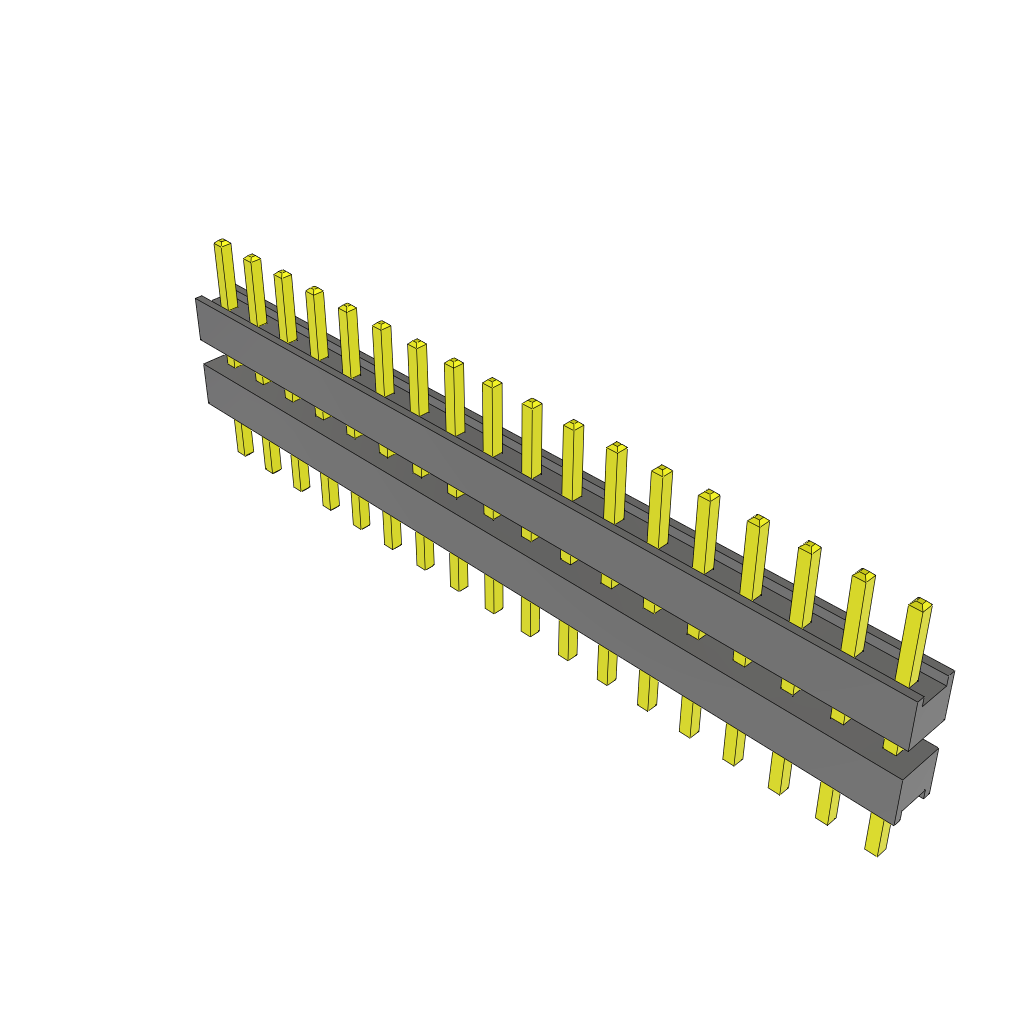

The ZW-18-08-L-S-260-135 is a board stacker connector with 18 HDR contacts and a 2.54mm terminal pitch. It features a straight body orientation and is designed for through-hole mounting. The connector has a maximum operating temperature range of -55°C to 125°C and a maximum current rating of 3A per contact. It is suitable for use in applications where high-density connectivity is required.
MountingThrough Hole
Quick Jump:
Technical Specifications
Samtec ZW-18-08-L-S-260-135 technical specifications.
General
| Type | Board Stacker |
| Gender | HDR |
| Number of Contacts | 18 |
| Terminal Pitch | 2.54mm |
| Number of Rows | 1 |
| Termination Method | Solder |
| Min Operating Temperature | -55°C |
| Max Operating Temperature | 125°C |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Max Current Rating | 3/ContactA |
| Height | 10.03mm |
| Mating Length | 3.44mm |
Compliance
| RoHS | Yes |
| RoHS Version | 2011/65/EU, 2015/863 |
Datasheet
Samtec ZW-18-08-L-S-260-135 Datasheet
Download the complete datasheet for Samtec ZW-18-08-L-S-260-135 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
