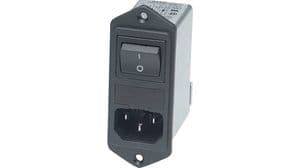

Standard and High-Density Card Edge Connector, a power entry module with an IEC320-C14 inlet. Features a 3-position, straight orientation with quick connect termination. Rated for 250V AC at 50-400Hz, with a 4A current rating. Includes a 5 x 20mm fuse and a 1mH inductance. Panel mountable with flanges and screws, offering IP40 protection and UL94 V-2 flammability. Operates from -25°C to 85°C.
Frequency50 to 400Hz
PackageModule
Current4A
Resistance1MR
Quick Jump:
Technical Specifications
Schaffner FN282-4-06 technical specifications.
General
Package/Case
Module
Current
4A
Current Rating
4A
Depth
64.8mm
Flammability Rating
UL94 V-2
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
82mm
Inductance
1mH
Length
32mm
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
50 to 400Hz
Orientation
Straight
Package Quantity
40
Packaging
Tray
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
FN 280
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Schaffner FN282-4-06 Datasheet
Download the complete datasheet for Schaffner FN282-4-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
