General purpose filter module with 4A current rating and 250V AC/DC voltage rating. Features 3 positions, male gender, and straight orientation for solder termination. Designed for panel mounting with a snap-in mechanism, accommodating up to 3mm panel thickness. Includes fuse capability for 5 x 20mm fuses and a capacitance of 220nF. Operates within a temperature range of -25°C to 85°C and meets UL94 V-2 flammability rating.
Frequency50 to 400 Hz
PackageModule
Current4A
Capacitance220nF
Quick Jump:
Technical Specifications
Schaffner FN286-4-06 technical specifications.
General
| Capacitance | 220nF |
| Package/Case | Module |
| Current | 4A |
| Current Rating | 4A |
| Depth | 65.3mm |
| Filter Type | GENERAL PURPOSE |
| Flammability Rating | UL94 V-2 |
| Fuse | Yes |
| Fuse Size | 5 x 20mm |
| Gender | Male |
| Length | 32mm |
| Max Current Rating | 4A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Snap in |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Operating Frequency | 50 to 400 Hz |
| Orientation | Straight |
| Package Quantity | 40 |
| Packaging | Tray |
| Panel Thickness | 3mm |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FN 280 |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
| Width | 32mm |
Compliance
| RoHS | Compliant |
Datasheet
Schaffner FN286-4-06 Datasheet
Download the complete datasheet for Schaffner FN286-4-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

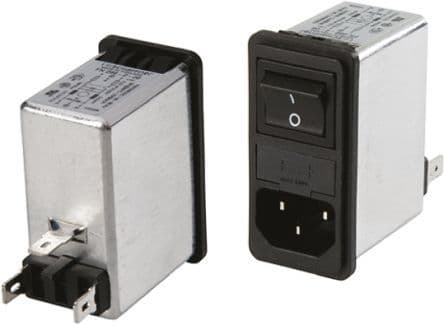

Product Images
