General purpose filter module with a 6A current rating and 250V AC voltage rating. Features a straight, male, 3-position, 3-contact card edge connector with solder termination. Designed for panel mounting with a snap-in mechanism, accommodating up to 3mm panel thickness. Includes a fuse holder for 5x20mm fuses and operates within a temperature range of -25°C to 85°C. Rated IP40 and RoHS compliant.
Frequency50 to 400 Hz
PackageModule
Current6A
Resistance1MR
Quick Jump:
Technical Specifications
Schaffner FN286-6-06 technical specifications.
General
Package/Case
Module
Current
6A
Current Rating
6A
Depth
65.3mm
Filter Type
GENERAL PURPOSE
Flammability Rating
UL94 V-2
Fuse
Yes
Fuse Size
5 (Dia.) x 20mm
Gender
Male
Inductance
450uH
Length
32mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
50 to 400 Hz
Orientation
Straight
Package Quantity
40
Packaging
Tray
Panel Thickness
3mm
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
FN 280
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
32mm
Compliance
RoHS
Compliant
Datasheet
Schaffner FN286-6-06 Datasheet
Download the complete datasheet for Schaffner FN286-6-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

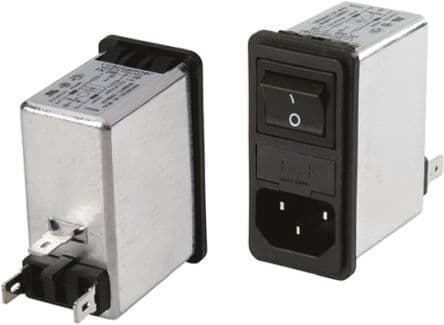

Product Images
