Standard Card Edge Connector, 3-pole, 3-position, male, straight orientation, panel mount with flanges and screw termination. Features 10A max current rating, 250V AC voltage rating, 100nF capacitance, and 0.225mH inductance. Operates from -25°C to 85°C and 0 to 400 Hz. UL, CSA, VDE, and ENEC approvals, with UL94 V-2 flammability rating. RoHS compliant.
Frequency0 to 400 Hz
PackageModule
Current10A
Capacitance100nF
Quick Jump:
Technical Specifications
Schaffner FN9222R-10-06 technical specifications.
General
Approvals
UL, CSA, VDE, ENEC
Capacitance
100nF
Package/Case
Module
Current
10A
Current Rating
10A
Depth
57.9mm
Flammability Rating
UL94 V-2
Fuse
No
Gender
Male
Height
22.5mm
Inductance
0.225mH
Length
48mm
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
3
Number of Ports
1
Number of Positions
3
Operating Frequency
0 to 400 Hz
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
FN 9222
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
22.5mm
Compliance
RoHS
Compliant
Datasheet
Schaffner FN9222R-10-06 Datasheet
Download the complete datasheet for Schaffner FN9222R-10-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

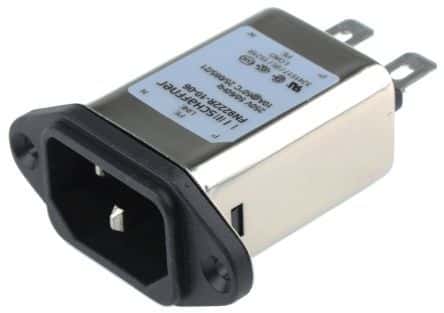

Product Images
