Standard and high-density card edge connector with a 6A current rating and 250V AC voltage rating. Features a 3-position, 3-contact male gender with solder termination. Includes a fuse holder for 5 x 20mm fuses and integrated 100nF capacitance and 0.3mH inductance for power entry filtering. Panel mountable with flanges, offering IP40 protection and a UL94 V-2 flammability rating. Operates within a temperature range of -25°C to 85°C.
Frequency0 to 400 Hz
PackageModule
Current6A
Capacitance100nF
Quick Jump:
Technical Specifications
Schaffner FN9260B-6-06 technical specifications.
General
Approvals
UL, CSA
Capacitance
100nF
Package/Case
Module
Current
6A
Current Rating
6A
Depth
41mm
Flammability Rating
UL94 V-2
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
35mm
Inductance
0.3mH
Length
46mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
0 to 400 Hz
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
FN 9260
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Width
35mm
Compliance
RoHS
Compliant
Datasheet
Schaffner FN9260B-6-06 Datasheet
Download the complete datasheet for Schaffner FN9260B-6-06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

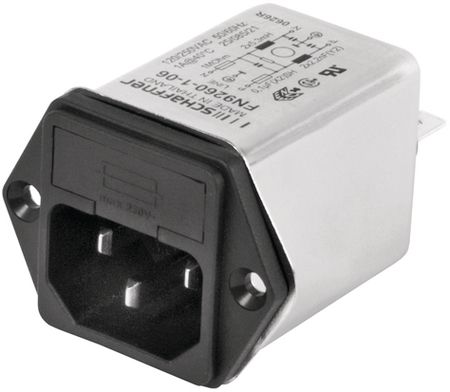

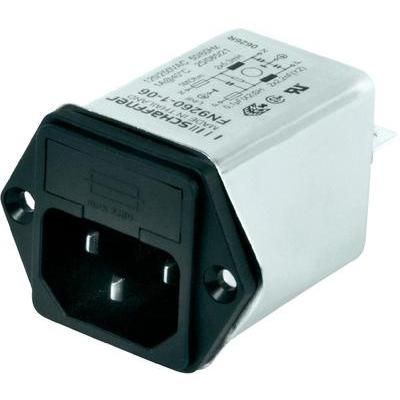

Product Images
