Optical Solid State Relay (SSR) with transistor output, featuring 1 channel and 3A load current capability. This SIP package SSR offers 4000V isolation and operates with a DC input voltage range of 3V to 60V, supporting a maximum output voltage of 60V. Designed for panel, DIN rail, PCB, and through-hole mounting, it boasts a 3A output current rating and a wide operating temperature range from -40°C to 100°C. Approvals include UL, CSA, and TUV, with a RoHS compliant status.
PackageSIP
Current Rating3A
MountingPanel, DIN Rail, PCB, Through Hole
Quick Jump:
Technical Specifications
Schneider 70S2-01-A-03-V technical specifications.
General
Approvals
UL, CSA, TUV
Package/Case
SIP
Current Rating
3A
Depth
10.2mm
Height
26mm
Input Type
DC
Length
43.2mm
Load Current
3A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
60V
Max Supply Voltage (DC)
60V
Min Supply Voltage (DC)
3V
Max Supply Voltage
60V
Min Supply Voltage
3V
Mount
Panel, DIN Rail, PCB, Through Hole
Operating Supply Voltage
60V
Output Current
3A
Package Quantity
10
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
70S2
Termination
Solder
Throw Configuration
SPST
Turn-On Delay Time
75ms
DC Rated Voltage
60V
Width
10.2mm
Compliance
RoHS
Compliant
Datasheet
Schneider 70S2-01-A-03-V Datasheet
Download the complete datasheet for Schneider 70S2-01-A-03-V to view detailed technical specifications.
No datasheet is available for this part.

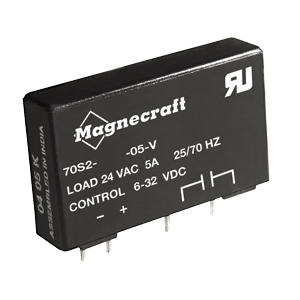

Product Images
