The ATS01N112FT is a 480V 12A motor controller designed for panel or DIN rail mounting. It operates within a temperature range of -10°C to 40°C and is compliant with RoHS regulations. With a voltage rating of 480V and a DC rated voltage of 210V, this controller is suitable for a variety of applications. The device has a length of 130.7mm and an overall depth of 145mm, making it a compact solution for motor control systems.
Voltage Rating480V
Current Rating12A
MountingPanel, DIN Rail
Quick Jump:
Technical Specifications
Schneider ATS01N112FT technical specifications.
General
| Control Voltage | 240V |
| Current Rating | 12A |
| Length | 130.7mm |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 480V |
| Min Supply Voltage | 110V |
| Mount | Panel, DIN Rail |
| Overall Depth | 145mm |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ATS01 |
| Voltage Rating | 480V |
| DC Rated Voltage | 210V |
Compliance
| RoHS | Compliant |
Datasheet
Schneider ATS01N112FT Datasheet
Download the complete datasheet for Schneider ATS01N112FT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

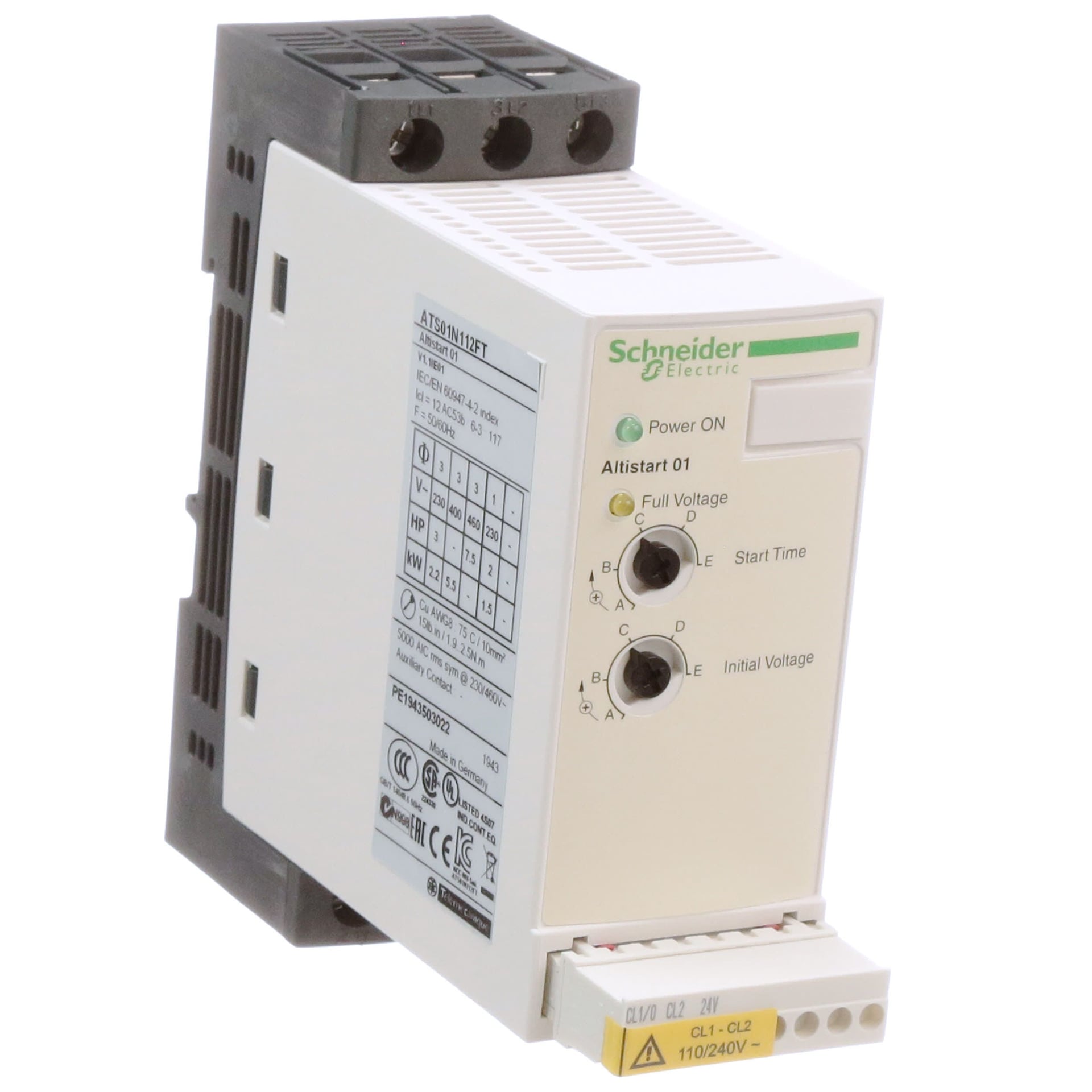

Product Images
