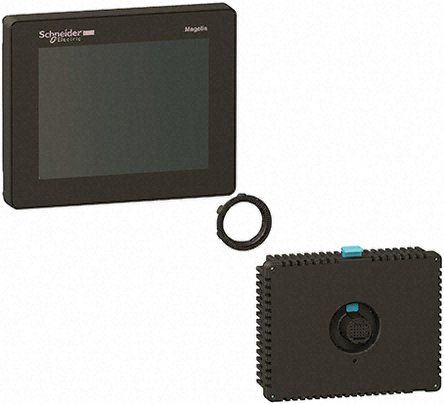

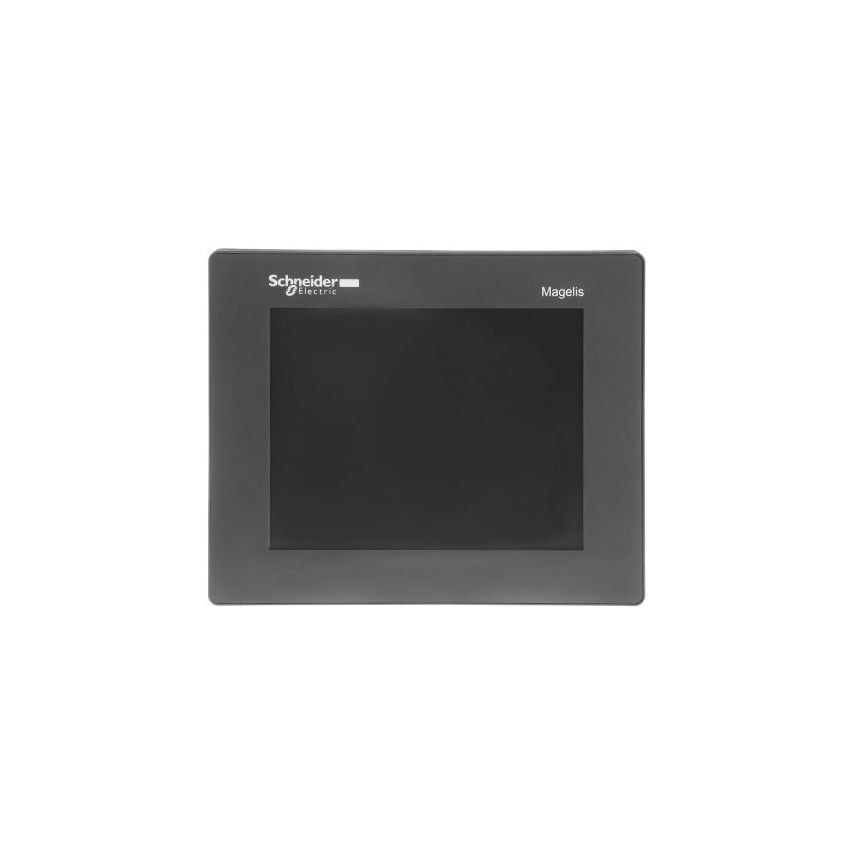

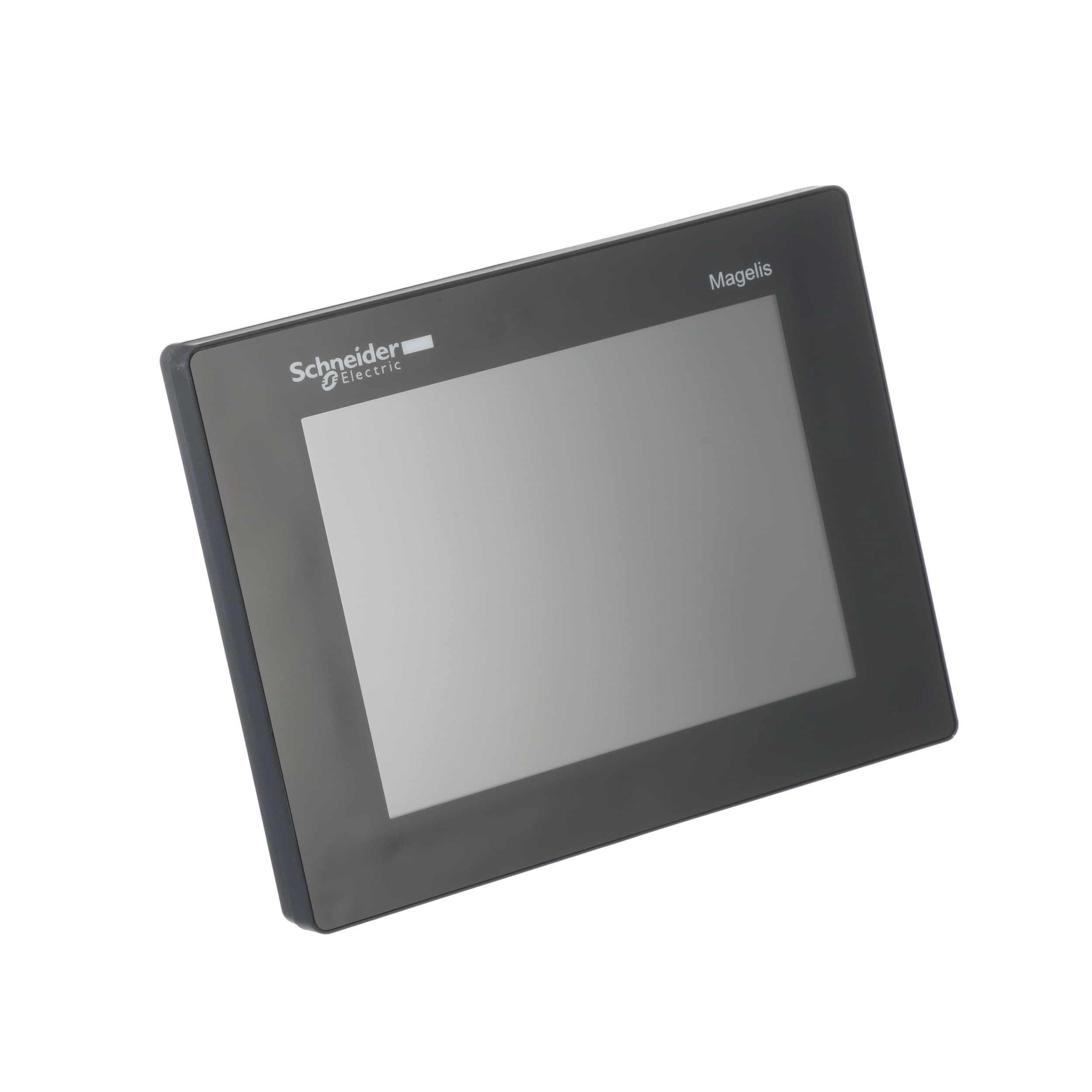

The HMISTU855 is a 24V DC rated, 30A current rated, panel mount LCD display with 5 ports and a resolution of 240x320 pixels. It operates within a temperature range of 0 to 50°C and is compliant with RoHS regulations. The display has a depth of 1.291inch, length of 6.417inch, and width of 5.094inch. It is part of the STU series from Schneider and has an IP20 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Schneider HMISTU855 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Schneider HMISTU855 technical specifications.
| Current Rating | 30A |
| Depth | 1.291inch |
| Display Type | LCD |
| Length | 6.417inch |
| Manufacturer Series | STU |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage (DC) | 28.8V |
| Min Supply Voltage (DC) | 20.4V |
| Mount | Panel |
| Number of Ports | 5 |
| Operating Supply Voltage | 24V |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| Resolution (height) | 240pixel |
| Resolution (width) | 320pixel |
| RoHS Compliant | Yes |
| DC Rated Voltage | 24V |
| Width | 5.094inch |
| RoHS | Compliant |
