The LC1D40AP7 is a 3-pole coil switch from Schneider with a contact current rating of 40A and a coil voltage of 230V AC. It has a package size of 600 and measures 120mm in depth, 122mm in length, and 55mm in width. The switch operates within a temperature range of -5°C to 60°C.
Package600
Quick Jump:
Technical Specifications
Schneider LC1D40AP7 technical specifications.
General
| Package/Case | 600 |
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 40A |
| Depth | 120mm |
| Length | 122mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Number of Poles | 3 |
| Reach SVHC Compliant | Unknown |
| Series | LC1 |
| Throw Configuration | 3P |
| Width | 55mm |
Compliance
| RoHS | Compliant |
Datasheet
Schneider LC1D40AP7 Datasheet
Download the complete datasheet for Schneider LC1D40AP7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

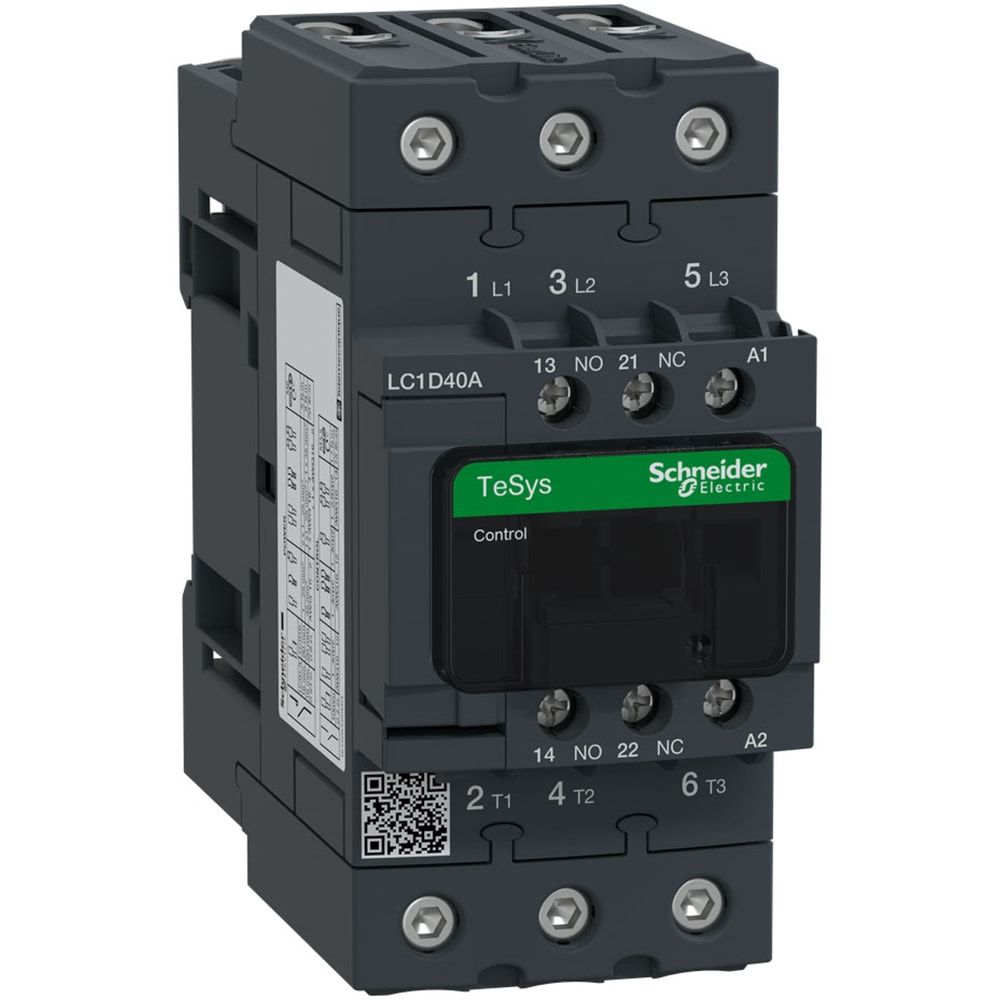

Product Images
