The DSF-18-0006 is a through-hole fixed inductor with a radial package and a self-resonant frequency of 7MHz. It has a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. The inductor is rated for a maximum current of 4A and a DC rated voltage of 600V. It is available in a bulk packaging with 45 units per package.
PackageRadial
MountingThrough Hole
Inductance11uH
Quick Jump:
Technical Specifications
Schurter DSF-18-0006 technical specifications.
General
| Package/Case | Radial |
| Depth | 17.8mm |
| Height | 12.4mm |
| Inductance | 11uH |
| Lead/Base Style | Pin |
| Length | 0.717inch |
| Max Current Rating | 4A |
| Max DC Current | 4A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Lines | 2 |
| Package Quantity | 45 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 7MHz |
| Series | DSF |
| Tolerance | 15% |
| DC Rated Voltage | 600V |
| Weight | 0.246918oz |
| Width | 0.701inch |
Compliance
| RoHS | Compliant |
Datasheet
Schurter DSF-18-0006 Datasheet
Download the complete datasheet for Schurter DSF-18-0006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

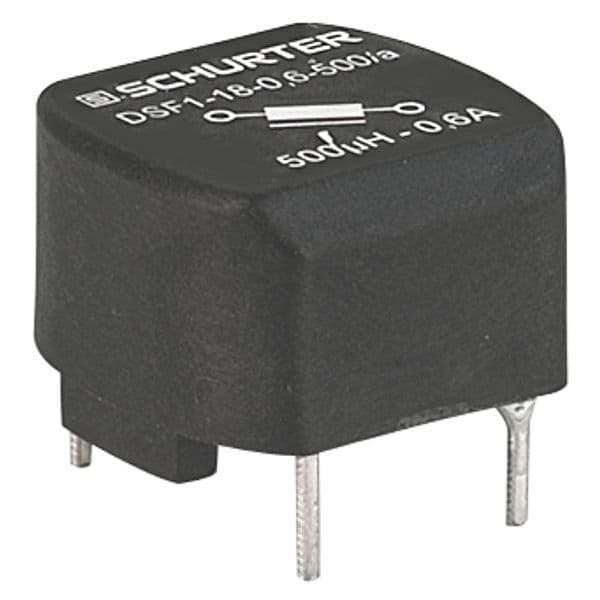

Product Images
