Triple color LED emitter featuring Red, Green, and Blue light output. This surface mount device offers a 120° viewing angle and a clear, round lens. With a forward current of 350mA and a maximum operating temperature of 85°C, it delivers 13lm luminous flux. The LED measures 6mm in length, 5mm in width, and 1mm in height, with a 4.2mm package size. It operates within a temperature range of -30°C to 85°C and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Seoul Semiconductor F50360 technical specifications.
General
Color
Blue, Green, Red
Forward Current
350mA
Height
1mm
Length
6mm
Lens Color
Clear
Lens Style
Round
Luminous Flux
13lm
Max Current Rating
400mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of LEDs
3
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
Z Power P5-II
Thermal Resistance of Package
22°C/W
Viewing Angle
120°
Wavelength
460nm
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Seoul Semiconductor F50360 Datasheet
Download the complete datasheet for Seoul Semiconductor F50360 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

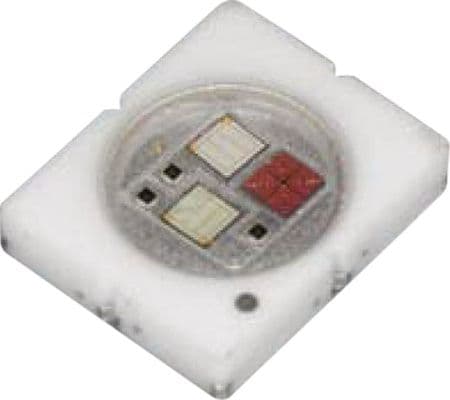

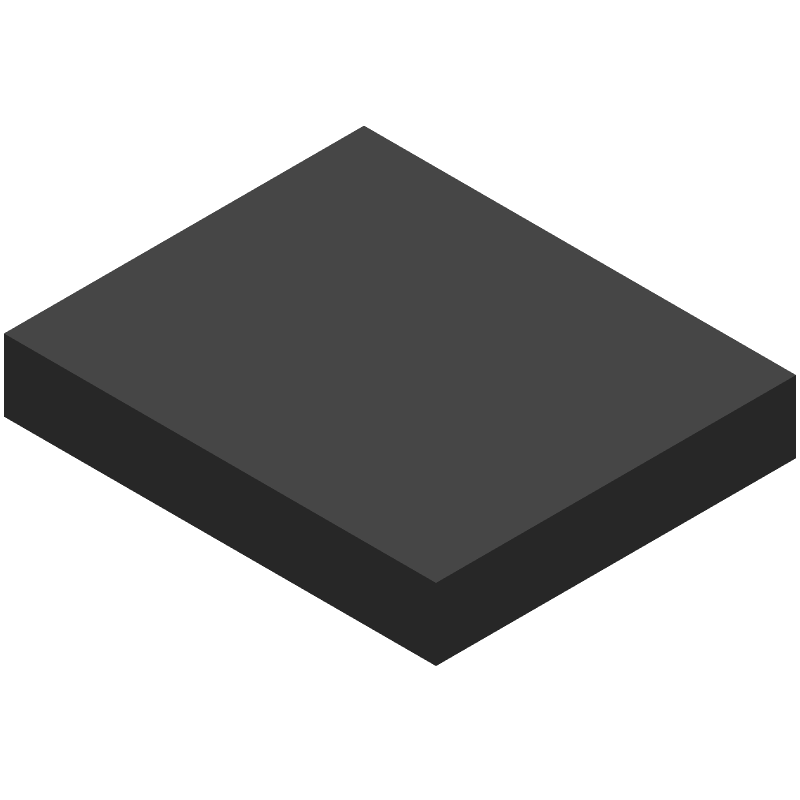

Product Images
