Triple color LED emitter featuring three individual LEDs (Red, Green, Blue) in a surface-mount PLCC package. This diffused lens LED offers a 120° viewing angle and operates with a 20mA forward current. Key specifications include a 2.8lm luminous flux and 400mcd luminous intensity. The component is RoHS compliant, housed in a 3.2mm x 2.8mm x 1.4mm plastic package with a white diffused lens.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Seoul Semiconductor SFT825N-S technical specifications.
General
| Package/Case | PLCC |
| Color | Blue, Green, Red |
| Forward Current | 20mA |
| Height | 1.4mm |
| Length | 3.2mm |
| Lens Color | White |
| Lens Style | Diffused, Colorless, Rectangular |
| Lens Transparency | Diffused |
| Luminous Flux | 2.8lm |
| Luminous Intensity | 400mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 3 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Viewing Angle | 120° |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Seoul Semiconductor SFT825N-S Datasheet
Download the complete datasheet for Seoul Semiconductor SFT825N-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

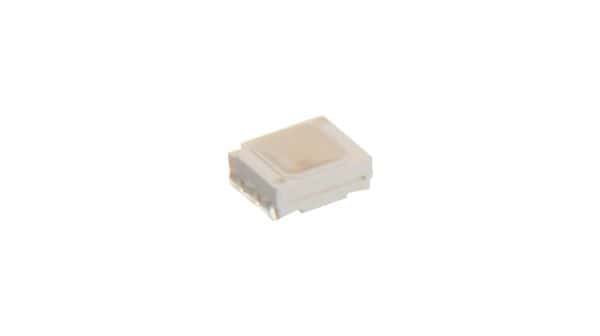

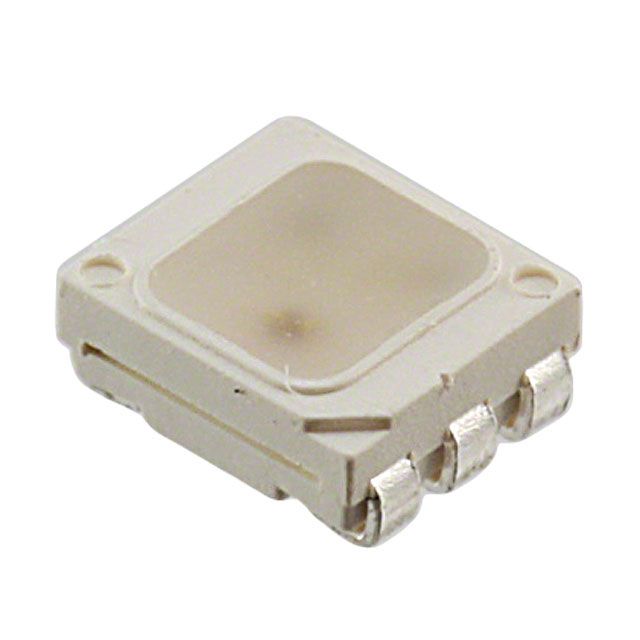

Product Images
