Technical Specifications
Sharp PC410L0YIT0F technical specifications.
General
| Data Rate | 10Mbps |
| Direction | Unidirectional |
| Fall Time | 10ns |
| Forward Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3.75V |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 85mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Power Dissipation | 85mW |
| Propagation Delay | 48ns |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| Series | OPIC™ |
| Turn-On Delay Time | 75ns |
Compliance
| RoHS | Compliant |
Datasheet
Sharp PC410L0YIT0F Datasheet
Download the complete datasheet for Sharp PC410L0YIT0F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

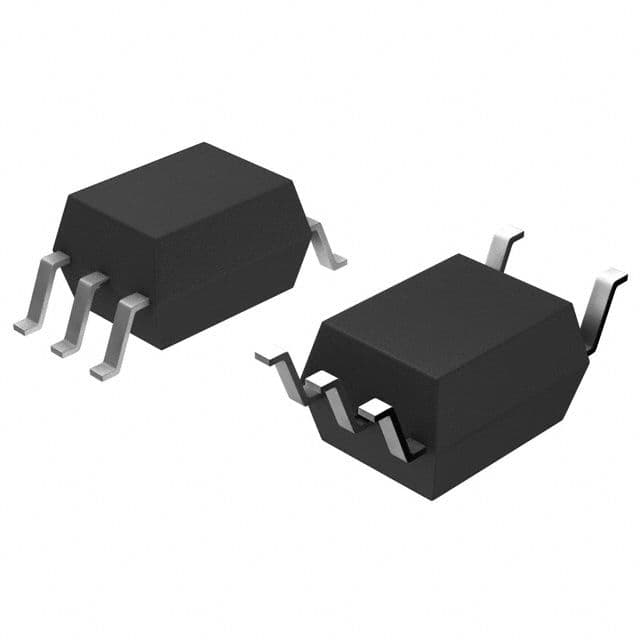

Product Images
