Transistor output optocoupler featuring 5kV isolation and a 1-element DIP-4 package. Offers 80V collector-emitter breakdown voltage and a maximum collector current of 50mA. Achieves a current transfer ratio of 600% with a 20mA input current. Operates within a temperature range of -30°C to 100°C and has a power dissipation of 200mW.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Sharp PC817XJ0000F technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Breakdown Voltage | 80V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 80V |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 600% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Height | 3.5mm |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Length | 4.58mm |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -30°C |
| Max Power Dissipation | 200mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Sharp PC817XJ0000F Datasheet
Download the complete datasheet for Sharp PC817XJ0000F to view detailed technical specifications.
No datasheet is available for this part.

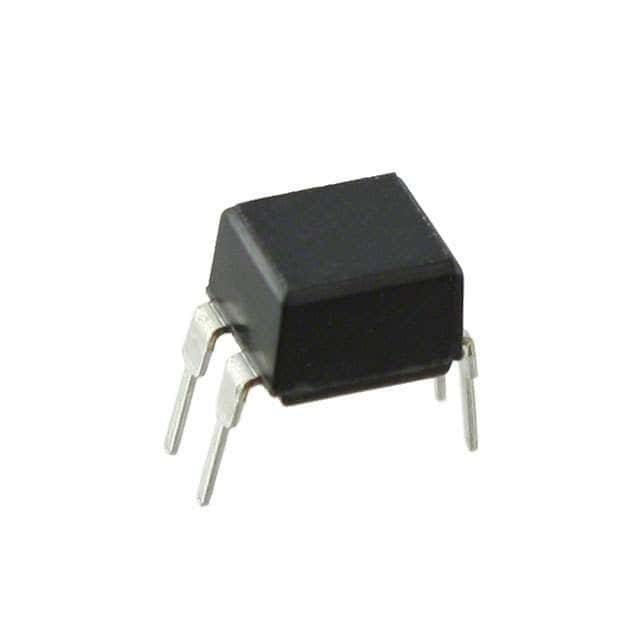

Product Images
