Siemens
3RF21501AA02
Sirius 3RF21 semi-conductor relay, 22.5 mm width Siemens 3RF2150-1AA02 Current load 50 A Switching voltage 24 - 230 Vac
MountingChassis
Quick Jump:
Technical Specifications
Siemens 3RF21501AA02 technical specifications.
General
Depth
48mm
Height
85mm
Isolation Voltage
600V
Length
22.5mm
Load Current
50A
Max Input Voltage
230V
Min Input Voltage
24V
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Max Output Voltage
30V
Max Supply Voltage (AC)
230V
Min Supply Voltage (AC)
24V
Max Supply Voltage
230V
Min Supply Voltage
24V
Mount
Chassis
Ratings
IP20
Reach SVHC Compliant
No
RMS Current (Irms)
50A
Series
3RF21
Termination
Screw
Compliance
RoHS
Compliant
Datasheet
Siemens 3RF21501AA02 Datasheet
Download the complete datasheet for Siemens 3RF21501AA02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

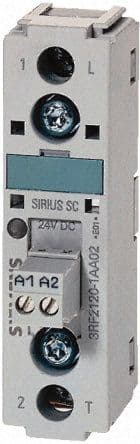

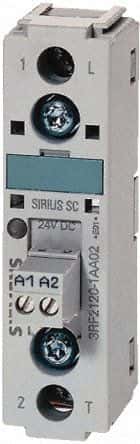

Product Images
