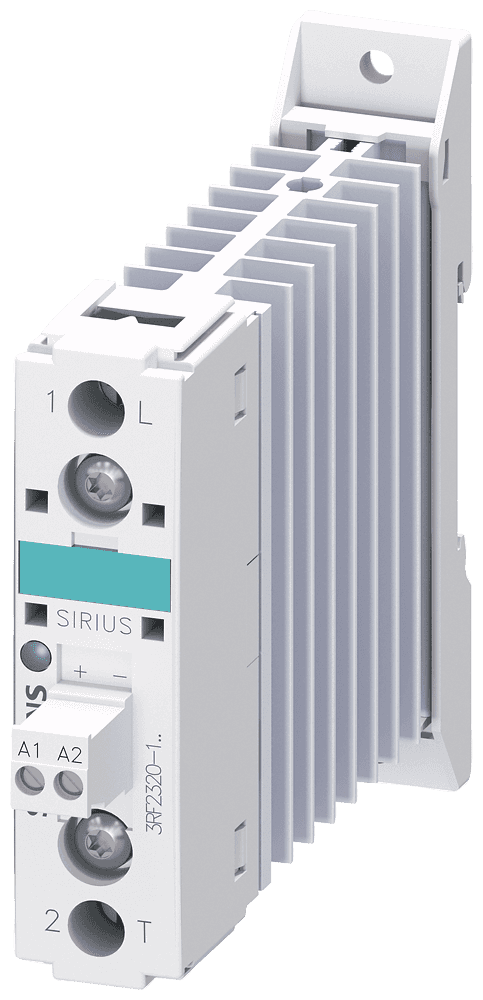

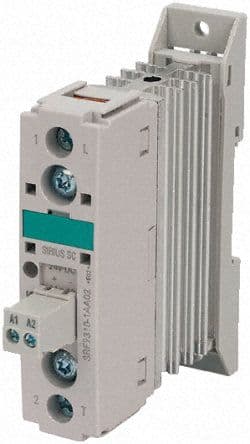

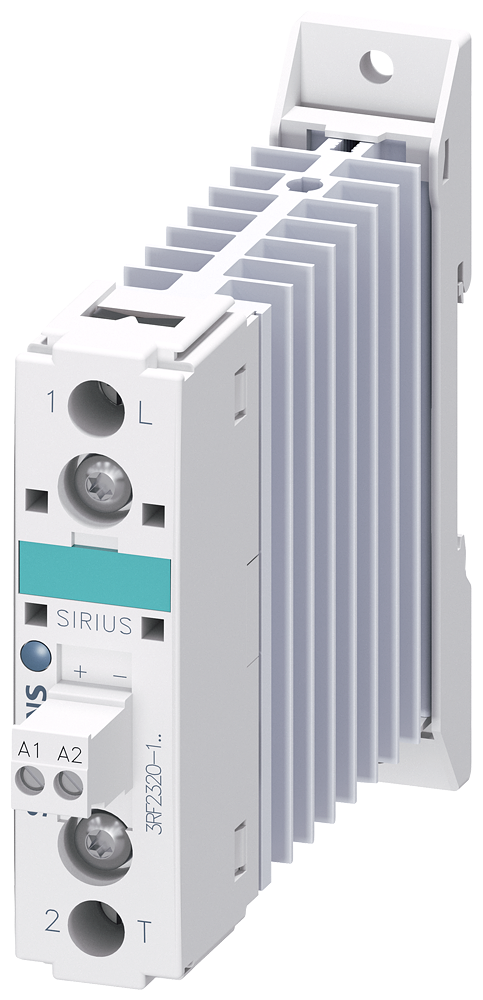

Solid State Contactor, 20A contact current rating, 460V AC voltage rating, and 24VDC coil voltage. Features 600V isolation voltage, 20A load current, and operates within a -25°C to 60°C temperature range. Mounts via DIN rail or panel and utilizes screw termination. Approvals include UL, CSA, CE, and GOST.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3RF23201AA04 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, GOST |
| Package/Case | 460 |
| Contact Current Rating | 20A |
| Current Rating | 20A |
| Depth | 140.5mm |
| Height | 100mm |
| Isolation Voltage | 600V |
| Length | 22.5mm |
| Load Current | 20A |
| Max Input Voltage | 460V |
| Min Input Voltage | 230V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Output Voltage | 30V |
| Max Supply Voltage (AC) | 460V |
| Min Supply Voltage (AC) | 230V |
| Max Supply Voltage | 460V |
| Min Supply Voltage | 230V |
| Mount | DIN Rail, Panel |
| Number of Poles | 1 |
| RMS Current (Irms) | 20A |
| Series | 3RF23 |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 460V |
| Width | 0.886inch |
| RoHS | Not Compliant |
