The 3RP15051AP30 relay from Siemens is a 200 package, 240V AC coil voltage change-over relay with a nominal input voltage of 240V. It operates within a temperature range of -25°C to 60°C and has a width of 22.5mm. The relay has a screw termination and is rated for IP40. It is not Reach SVHC compliant.
Package200
Quick Jump:
Technical Specifications
Siemens 3RP15051AP30 technical specifications.
General
| Package/Case | 200 |
| Coil Voltage (AC) | 240V |
| Contact Type | 1 change-over |
| Height | 102mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 24V |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 24V |
| Nominal Input Voltage | 240V |
| Operating Supply Voltage | 24V |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| Termination | Screw |
| Throw Configuration | SPDT |
| Width | 22.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Siemens 3RP15051AP30 Datasheet
Download the complete datasheet for Siemens 3RP15051AP30 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

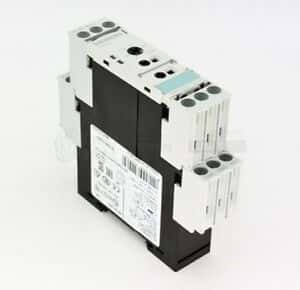

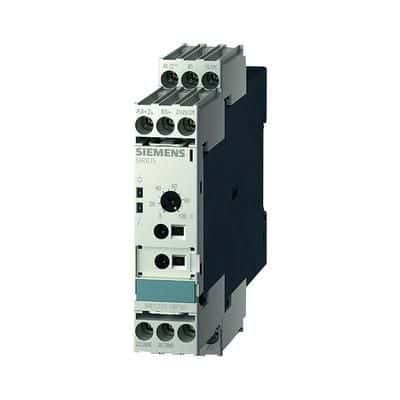

Product Images
