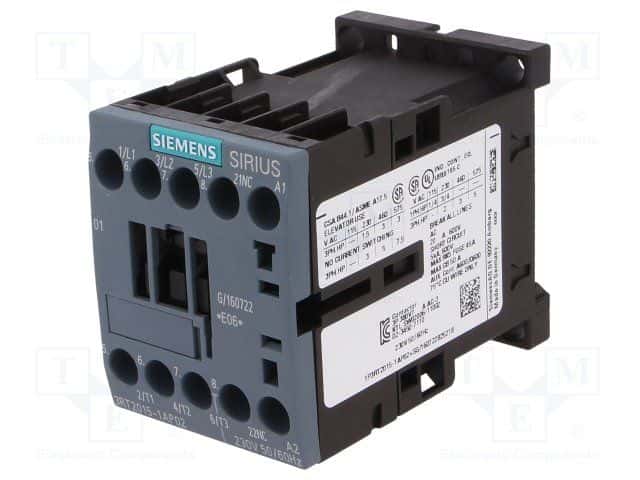

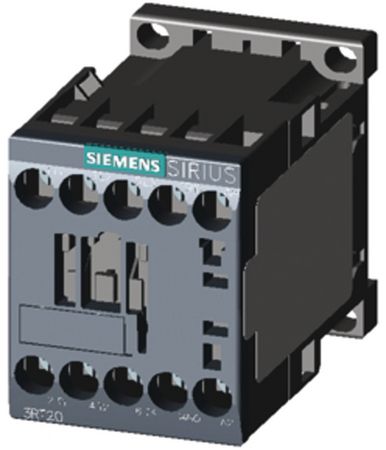

The 3RT2 3-pole relay has a contact current rating of 7A and can operate at coil voltages of up to 230V AC. It has a maximum operating temperature of 60°C and a minimum operating temperature of -25°C. The relay is rated for IP20 and has a depth of 73mm, length of 57.5mm, and width of 45mm. It is terminated with a screw connection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3RT2015-1AP02 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 7A |
| Depth | 73mm |
| Length | 57.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Number of Poles | 3 |
| Ratings | IP20 |
| Series | 3RT2 |
| Termination | Screw |
| Width | 45mm |
| RoHS | Not Compliant |
Download the complete datasheet for Siemens 3RT2015-1AP02 to view detailed technical specifications.
