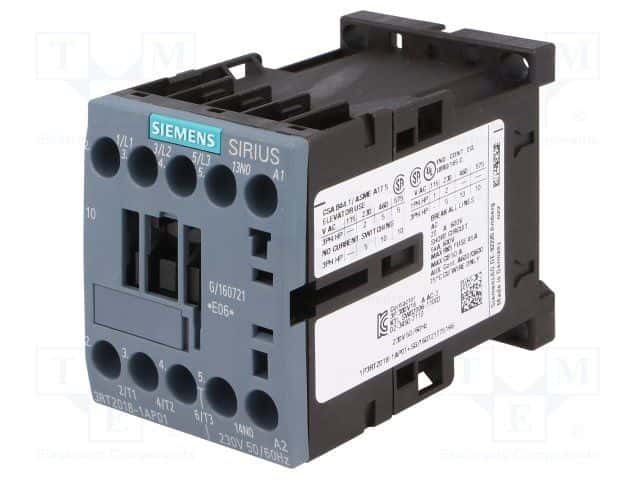

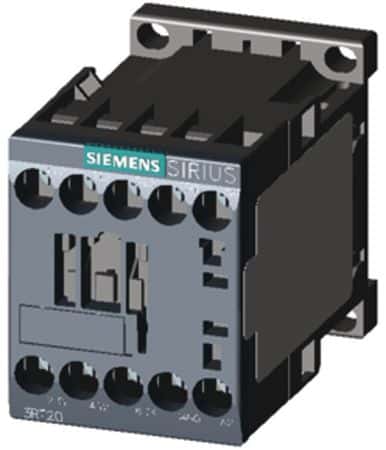

The 3RT2 3-Pole 16A 230V AC coil is a component of industrial automation and control systems. It has a maximum operating temperature of 60°C and a minimum operating temperature of -25°C. The coil is 73mm deep, 57.5mm long, and 45mm wide. It is rated for IP20 and has a screw termination. It is part of the Siemens 3RT2 series.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3RT2018-1AP01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 16A |
| Depth | 73mm |
| Length | 57.5mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Number of Poles | 3 |
| Ratings | IP20 |
| Series | 3RT2 |
| Termination | Screw |
| Width | 45mm |
| RoHS | Not Compliant |
Download the complete datasheet for Siemens 3RT2018-1AP01 to view detailed technical specifications.
