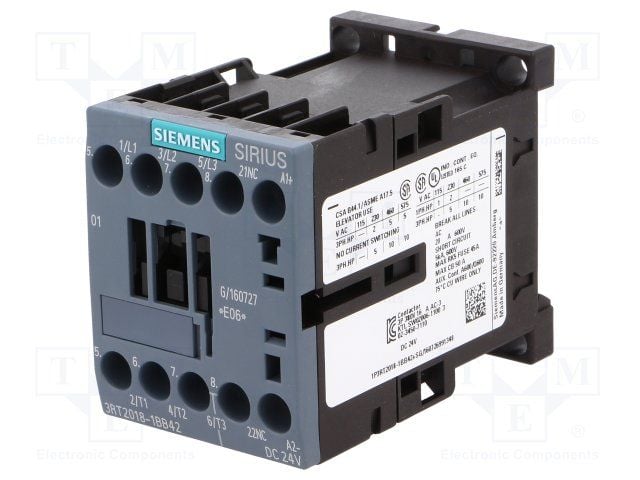

3-pole contactor with a 16A contact current rating and 24V DC coil voltage. Features one normally closed auxiliary contact and screw termination. Designed for DIN rail mounting, this component operates within a temperature range of -25°C to 60°C and carries IP20 ratings. Approvals include UL, CSA, CE, IEC, EAC, and GOST.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 3RT20181BB42 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE, IEC, EAC, GOST |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 16A |
| Current Rating | 16A |
| Depth | 0.079inch |
| Length | 2.263inch |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Ratings | IP20 |
| Series | 3RT2 |
| Termination | Screw |
| DC Rated Voltage | 24V |
| Width | 1.772inch |
| RoHS | Compliant |
