The LOGO! 6 is an 8-input 4-output DIN rail module with a maximum operating temperature of 55°C and an operating supply voltage of 24V. It is certified to UL, CSA, and VDE standards and has an output current of 300mA. The module is part of the LOGO! series and is rated for IP20. It measures 55mm in depth, 72mm in width, and 55mm in length.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Siemens 6ED1052-1CC01-0BA6 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Package/Case | Module |
| Depth | 55mm |
| Length | 55mm |
| Manufacturer Series | LOGO! 6 |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Mount | DIN Rail |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 24V |
| Output Current | 300mA |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | LOGO! |
| Width | 72mm |
Compliance
| RoHS | Compliant |
Datasheet
Siemens 6ED1052-1CC01-0BA6 Datasheet
Download the complete datasheet for Siemens 6ED1052-1CC01-0BA6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

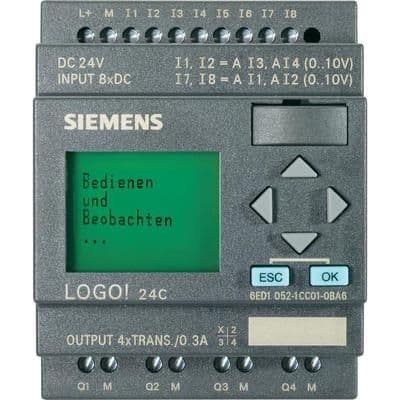

Product Images
