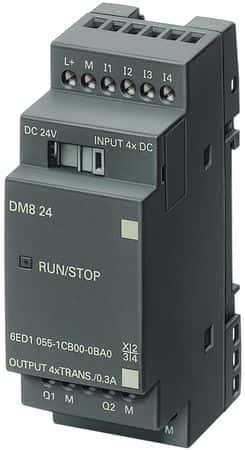

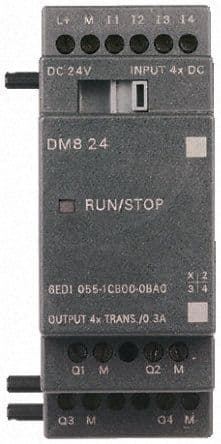

The Siemens LOGO! digital relay module features 4 inputs and 4 outputs with a maximum operating temperature of 55°C and a minimum operating temperature of 0°C. It is designed for DIN rail mounting and operates on a 24V supply voltage with an output current of 5A. The module is compliant with UL, CSA, VDE, and IEC approvals and has an IP20 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Siemens 6ED1055-1MB00-0BA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Siemens 6ED1055-1MB00-0BA1 technical specifications.
| Approvals | UL, CSA, VDE, IEC |
| Package/Case | Module |
| Depth | 55mm |
| Input Type | DIGITAL |
| Length | 55mm |
| Manufacturer Series | LOGO |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | 0°C |
| Mount | DIN Rail |
| Number of Inputs | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 24V |
| Output Current | 5A |
| Output Type | RELAY, Digital |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| Series | LOGO! |
| Width | 36mm |
| RoHS | Compliant |
Download the complete datasheet for Siemens 6ED1055-1MB00-0BA1 to view detailed technical specifications.
